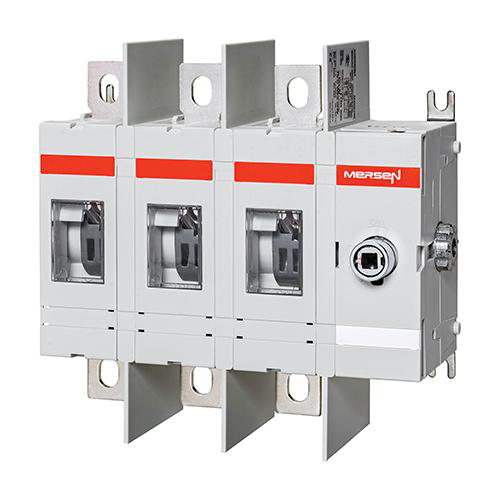

Product image for Mersen M100U3 IEC UL98 Switch 100A
Email

Mersen M100U3 IEC UL98 Switch 100A

Manufacturer: Ferraz Shawmut | Catalog # M100U3 | Echo Electric Part # 153027
$401.32/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Mersen disconnect switches are extremely durable and versatile. These heavy-duty switches are designed with the most up-to-date disconnect switch technology available. Designed to suit the UL98 standard, the switch gives you a product that makes and breaks power circuits on load. The switches are tested and approved for use in demanding applications, such as Service Entrance.

Technical Information

Amperage
100 Amp
Applications
Service Entrance or Main Panel Disconnect
Connection Type
Tunnel Terminal
Max Operating Temperature
40 degrees C
Min Operating Temperature
-5 degrees C
Mounting Type
Base
Number of Poles
3 Pole
Rated Insulation Voltage
750 V
Rated Voltage AC
600 V
Rated Voltage DC
0 V
Short Circuit Current Ratng
150000 A
TC Connection
Tunnel Terminal
Terminal Material
Silver-Plated Copper
Terminal Type
Box
Torque
55 lb-in
Torque Rating
55 lb-in
Type
UL/CSA Switches
Voltage
600 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
3605340557466
GTiN
33605340557467
Product UPC
60534055746
Weight
0.88 lb

Dimensions

Height
2.22 Inch
Length
3.94 Inch
Width
2.76 in

Certifications and Compliance

Country of Origin
Finland
Features
  • Service entrance rated
  • Front or side operation
  • Most compact size
  • Internally mounted auxiliary contacts
  • Flange mounting accessories
  • Flexible mounting
  • Adjustable shaft depth
Certifications
  • All UL switches meet the requirements of UL and CSA
  • UL listed guide WHTY, File E191605 for UL 98 (ratings from 30 A to 1200 A)
  • IEC 60947-3
