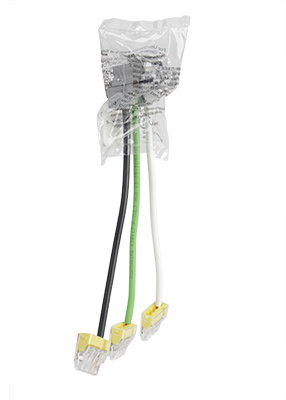

Product image for Pass & Seymour PTRA6-STRBP PlugTail™ Connector, Right Angle w/ WAGO Connector 6" Stranded
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Pass & Seymour PTRA6-STRBP PlugTail™ Connector, Right Angle w/ WAGO Connector 6" Stranded

Manufacturer: Pass & Seymour / Legrand | Catalog # PTRA6-STRBP | Echo Electric Part # 153702
$5.32/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Installation / Instruction Manual
PlugTail® Connectors Right Angle with WAGO Connector Stranded 6""For detailed PlugTail® information, visit our PlugTail® Headquarters.

Technical Information

Applications
For Commercial Use
Conductor Size
12 AWG
Dielectric Strength
2000 V
Material
Polycarbonate
Mounting Type
Device, Wall
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
7-1/2 in
Temperature Rating
-40 degrees C
Type
Right Angle
Wire Length
6 in
Wire Size
12 AWG
Wire Type
Lead

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007278255
Color
Gray
Finish
Matte
GTiN
00785007278255
Product Series
PlugTail
Product UPC
78500727825
UNSPSC
39121406
Used With
PlugTail Receptacle Only

Dimensions

Length
6 Inch

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Available in any wire length up to 25 inches, use Configurable Solutions to order.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6\"\" leads, stripped, stranded, for use with PlugTail Receptacles only
Certifications
  • cULus Listed
