PHNX 2866789 QUINT-PS/ 1AC/24DC/40

Manufacturer: Phoenix Blocks | Catalog # 2866789 | Echo Electric Part # 154108
$1,750.04/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days

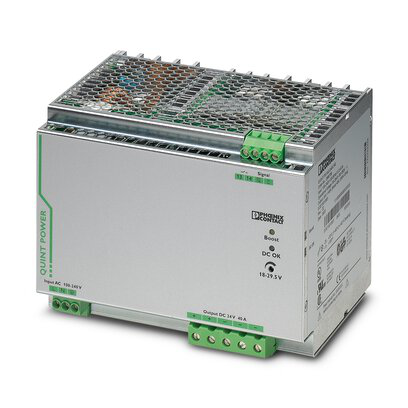

Primary-switched power supply unit, QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 24 V DC / 40 A

Technical Information

Amperage
40 Amp
Mounting Type
DIN Rail
Output Voltage
24 VDC
Strip Length
10 mm
Terminal Type
Pluggable Screw
Type
1-Phase, Primary Switched QUINT Power
Voltage
10 Volt

Manufacturer Information

Brand
Phoenix

General Product Info

12-Digit UPC
463564217206
Product UPC
46356421720

Dimensions

Depth
125 mm
Height
130 mm
Width
180 mm

Certifications and Compliance

Country of Origin
Thailand
Features
  • For superior system availability
  • Fast tripping of standard circuit breakers with dynamic power reserve SFB (selective fuse breaking) technology with up to 6 times the nominal current for 12 ms
  • Reliable starting of difficult loads with the static POWER BOOST power reserve with up to 1.5 times the nominal current permanently
  • Preventive function monitoring
Approvals
  • BV
  • cULus Listed
  • SEMI F47
  • EAC
  • cULus Recognized
  • LR
  • RINA
  • NK
  • IECEE CB Scheme
  • DNV GL
  • ABS
  • CSA
  • UL Listed
  • cUL Listed
  • UL Recognized
  • cUL Recognized
