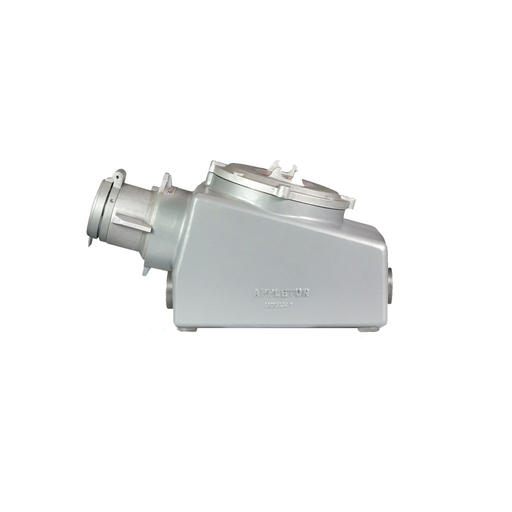

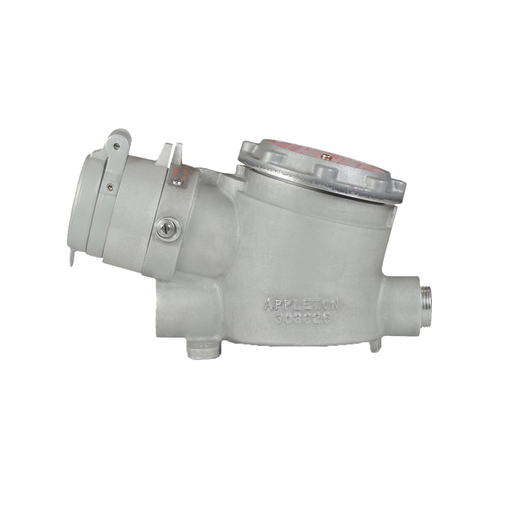

Appleton FSQC3430 Receptacle 30A, 3W, 4 Plug,1 Interlocked

Manufacturer: Appleton Electric | Catalog # FSQC3430 | Echo Electric Part # 154488
$2,745.79/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page
FSQC 30, 60 and 100 Amp Series Receptacles incorporate an interlocked disconnect switch for added safety in hazardous environments. The explosionproof and dust-ignitionproof FSQC is designed for use with Powertite™ plugs. Simply insert the plug and rotate the receptacle face to the ON position to lock it in place and energize the receptacle. For installations where different line voltages are used, a special polarization option prevents plug insertion into a receptacle wired for a different voltage.

Technical Information

Amperage
100 Amp
Applications
ACP3034BC Mating Plug
Conductor Size
10-8 AWG Terminal Block
Material
Aluminum
Mounting Type
Surface with 3/4 or 1 in Hub
Number of Poles
4 Pole
Number of Wires
3 Wire
Standard
Class E Requirements For Channel,Component Level Performance Per TIA,EIA-568-B.2-1 And ISO,Extreme 6+ System Components Meet Or Exceed The Category 6,IEC 11801-B. Components Certified Per UL And CUL Listed, NOM And ACA Requirements
Type
FSQC Series Receptacle With Mounting Box
Voltage
120 Volt
Wire Size
10-8 AWG

Manufacturer Information

Brand
Appleton

General Product Info

12-Digit UPC
781381208888
GTiN
00781381208888
Product UPC
78138120888
Features
  • Interlocked disconnect switch provides safe connect and disconnect operation at 30, 60 or 100 Amp, 600 Vac maximum, three pole, non-fused motor circuit switch
  • To operate, insert the plug and turn receptacle collar to the ON position. To remove the plug, turn the plug to the OFF position and pull the plug out
  • Style 2 (shell and extra pole) grounding
  • Spring door keeps dust out of receptacle when plug is not in use. Screw cover also supplied free of charge for NEMA 4 applications.
  • Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
  • Insulators provide superior dielectric and mechanical strength and lowest arc tracking
  • Contacts have beryllium copper wire springs
  • Tapped NPT conduit openings at top and bottom: 30 Amp 3/4#8221;, 60 Amp 1-1/2#8221;, 100 Amp 2#8221;
  • Large housing provides ample wiring room
  • Powertite™ Series plug fits hazardous location FSQC receptacles
