Hubbell HBL7540 15 Amp 125 Volt 2-Pole 2-Wire NEMA L1-15R Black Locking Duplex Receptacle

Manufacturer: Hubbell Wiring Device | Catalog # HBL7540 | Echo Electric Part # 154517
$33.55/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Duplex Flush Receptacle, 15A 125V, 2-Pole 2-Wire Non Grounding, NEMA L1-15R, Screw Terminal, Black.

Technical Information

Amperage
15 Amp
Applications
Heavy Duty Industrial
Conductor Size
14 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw

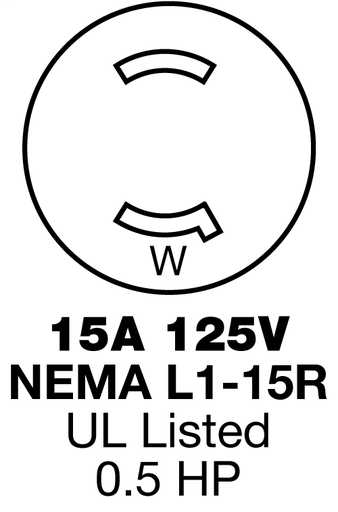

NEMA
L1-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
2 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,UL 498
TC Connection
Screw Terminal
Type
Traditional
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
2
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585237602
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585237602
Product UPC
78358523760
Weight
0.25 lb

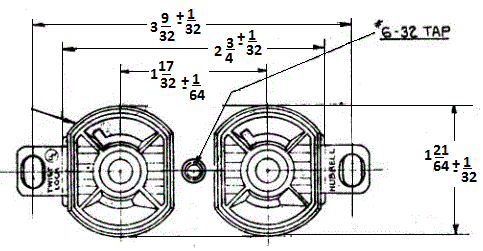

Dimensions

Height
1.19 Inch
Length
3.28 Inch
Width
1.32 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Thermoset construction offers high heat resistance
  • High performance copper alloy contacts
  • Corrosion resistant zinc plated steel one-piece mounting strap
  • Standard
