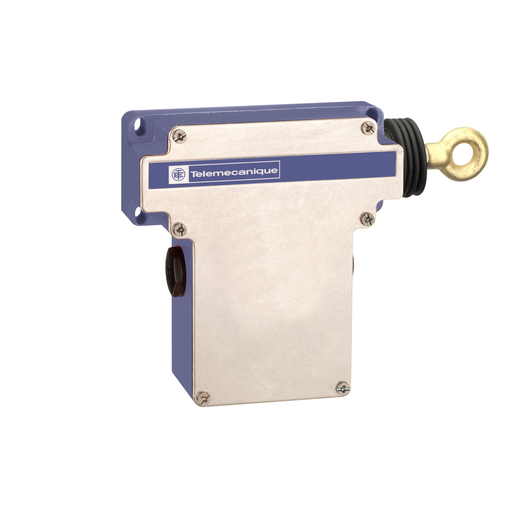

Product image for TES XY2CE3A010 Simple emergency stop rope pull switch, TES rope pull switches XY2C, XY2CE, RH side, 1NC+1 NO
Email

TES XY2CE3A010 Simple emergency stop rope pull switch, TES rope pull switches XY2C, XY2CE, RH side, 1NC+1 NO

Manufacturer: TES ELECTRIC | Catalog # XY2CE3A010 | Echo Electric Part # 155196
$706.91/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
The Preventa XY2CB simple stop rope pull switches are designed to avert hazards at the earliest possible moment. They reduce risks which could cause injury to persons or damage either to machines or work in progress. This version, without pilot light, has 1 NC + 1 NO contacts, slow break. The cable anchor point is on the right side.

Technical Information

Action
Snap action
Amperage
10 Amp
Applications
XY2CE,XY2CE
Body Material
Zamak
Contact Configuration
1 NC + 1 NO
Contact Rating
A300 - Q300
Cover Material
Stainless steel
Enclosure
NEMA 1/4/12
Operating Temperature
-25-70 Adegrees C
Standard
EN/IEC 60947-5-1
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINAL, 1 X 0.5...2 X 1.5 MMA
Type
Simple stop rope pull switch
Voltage
3 A 240 Volt, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 Volt, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A

Manufacturer Information

Brand
Telemecanique
Sub Brand
XY2CE

General Product Info

12-Digit UPC
785901590880
Color
Blue
Environmental Conditions
WATER TIGHT AND DUST TIGHT (INDOOR/OUTDOOR)
GTiN
03389110590883
Product UPC
78590159088

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA
Country of Origin
Morocco
