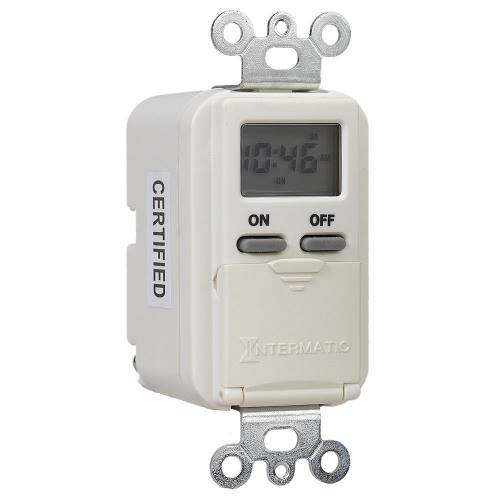

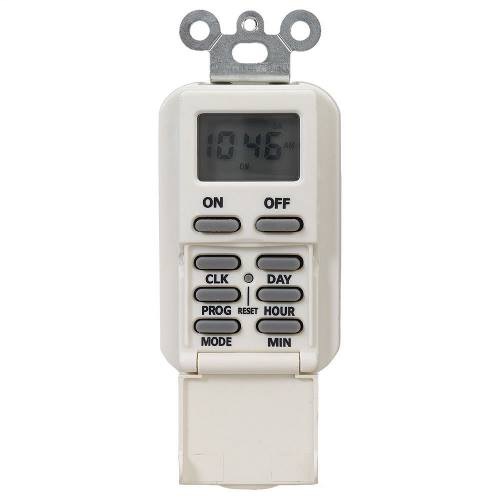

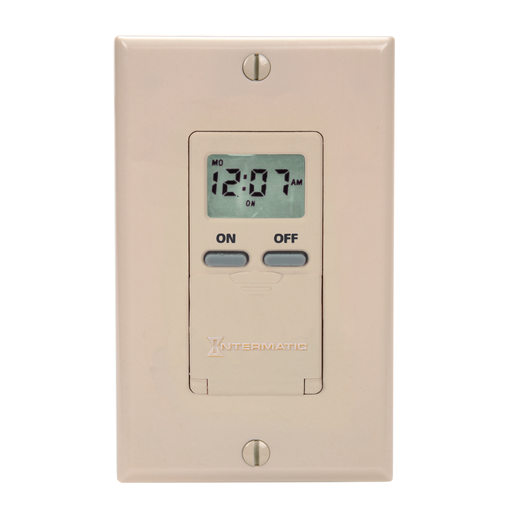

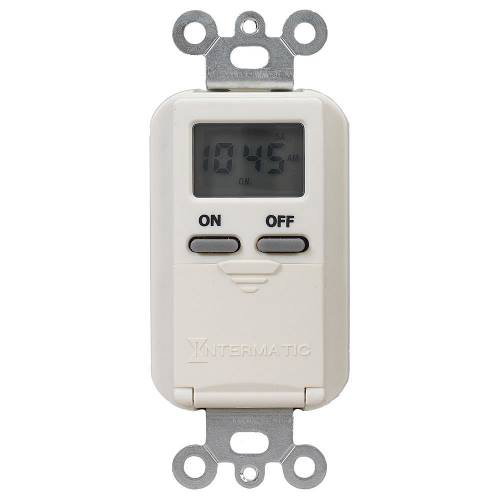

Product image for Intermatic EI500LAC 7-Day 120 VAC 60 Hz 15 Amp Light Almond Programmable Timer
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Intermatic EI500LAC 7-Day 120 VAC 60 Hz 15 Amp Light Almond Programmable Timer

Manufacturer: Intermatic, Inc | Catalog # EI500LAC | Echo Electric Part # 155502
$54.15/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
For installation on 15 A circuits, this timer provides 24-hour or 7-day programming of lights, fans, pumps and other medium-duty loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Technical Information

Action
SPST
Amperage
15 Amp
Applications
Incandescent Lighting, Fluorescent Lighting, HVACR, CFL Lighting, LED Lighting
Contact Configuration
(1) SPST - 1 NO
Contact Rating
15 A at 120 VAC (Resistive Heater), 8.3 A at 120 VAC (Tungsten Incandescent), 8 A at 120 VAC (Ballast Magnetic), 1875 W, 500 VA
Frequency
60 Hz
Input Voltage
125 V
Material
Plastic
Max Operating Temperature
104 degrees F
Min Operating Temperature
32 degrees F
Mounting Type
Wall Mount
Number of Poles
1 Pole
Operating Temperature
122 degrees F
Size
2.75 HEIGHT X 1.75 WIDTH X 1.36 DEPTH IN, 69.85 HEIGHT X 44.45 WIDTH X 34.54 DEPTH MM
Standard
CULus Listed,HVACR
Temperature Rating
32 - 122 degrees F, 0 - 50 degrees C
Type
Decorator
Voltage
120 Volt
Wattage
1875 Watt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275105225
Color
Light Almond
GTiN
00078275105225
Product UPC
07827510522
Weight
0.351 lb

Dimensions

Depth
1.438 Inch
Height
4-1/8 Inch
Warranty Length
1 yr
Width
1.75 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
China
Features
  • 7-day programmable schedules with 14 ON/OFF events
  • Random mode varies ON/OFF schedule to provide a \"lived-in\" appearance
  • Single-pole circuit
  • Incandescent/fluorescent/CFL/LED compatible
  • Built-in rechargeable, non-serviceable battery backup
  • Requires neutral connection
  • Backlit LCD display
  • Decorator switch plate not included
  • NA
