Lithonia Lighting FML4W-48-5000LM-840-TD 4 Foot 10Inch Wide Housing, 4000K Cool White LED Wraparound, Triac Dimming, White

Manufacturer: Lithonia Lighting | Catalog # FML4W485000LM840TD | Echo Electric Part # 155896

$166.92/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
The FML4W wide housing LED wrap was designed with the renovator in mind. While compatible with new construction, it’s no mystery the flexibility of the FML4W will keep renovation simple. A wider housing easily covers up existing blemishes from older fixtures, while the option to adjust lumens grants the perfect amount of light to any room. This is capped off by two dimming options; standard 0-10v dimming and for easy install, triac dimming. Triac dimming is connected straight through line voltage for easy dimming compatibility, especially in renovation or retrofit projects.All this means the FML4W shines in closets, foyers, hallways, laundry rooms, bedrooms, offices, utility work areas, and more.

Technical Information

Aperture Size
4 ft
Applications
Closet,Government,Hospitality,Offices & Banks,Residential,Utility
Average Rated Life
60,000 hr
Color Rendering Index
80
Color Temperature
4000 K
Correlated Color Temp
4000 K
Dimmable?
Yes
Lamp Life
60,000 hr
Lens Color
White
Lens Material
Polycarbonate
Lumens
5,000 Lumen
Material
Steel
Mounting Type
Ceiling,Wall
Type
Wraparound
Voltage
120 Volt
Wattage
54 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
194994011507
Color
White
Environment
Indoor
Environmental Conditions
Indoor
Finish
Semi-Gloss
GTiN
00194994011507
Product UPC
19499401150
Weight
6.6 lb

Dimensions

Height
3 Inch
Length
48 Inch
Width
10 in

Certifications and Compliance

Country of Origin
Mexico,Mexico
Features
  • DESIGN: The FML4W wraparound is a wider-body housing to help ease in renovation projects by easily covering up existing blemishes from older fixtures
  • ENERGY SAVINGS: Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality of illumination for extended service life
  • CONTROLS: Triac dimming available for easy dimming compatibility, especially in renovation or retrofit projects, triac dimming is connected straight throughline voltage
  • RATINGS/LISTINGS: CSA, Damp location listed for areas subject to moisture
  • INSTALLATION: Easily mounts to surface using the recessed junction box; 120 volt to use in both residential and light commercial applications
  • HOURS OF LIFE: Long lasting LED technology maintains 85 percent of lumen output at 60,000 hours with 4000 Kelvin cool white color temperature
  • DESIGN: Perfect for retrofit, its wide body helps cover-up the area where a fixture is being replaced
  • VOLTAGLE: Wraps produce 5,000 lumens (MVOLT); Dimmable through 0-10V
  • WARRANTY: 5-year limited warranty

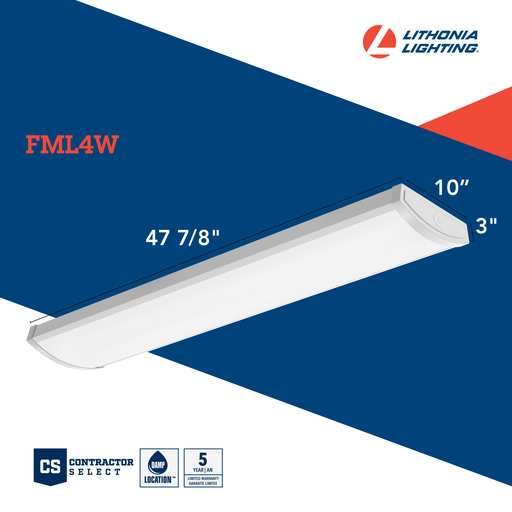

  • DIMENSIONS: 10 in x 47-7/8 in x 3 in
Applications
  • Government
  • Hospitality
  • Offices & Banks
  • Residential
  • Utility
  • Closet
Standards
  • CSADLC Standard
  • ENERGY STAR
