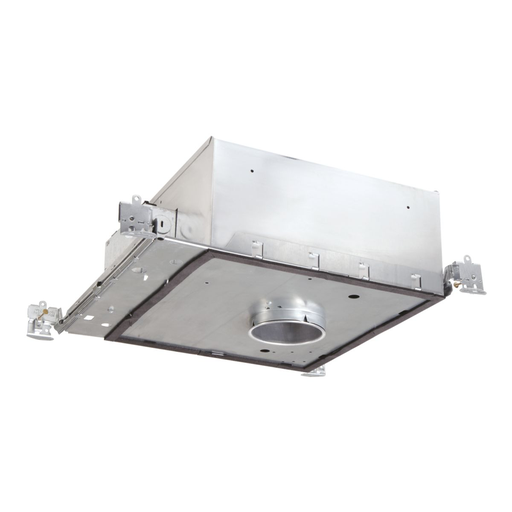

Product image for Halo H36ICAT 3" Housing IC Air-Tite Shallow Ceiling 120V Line Voltage, GU10
Email

Halo H36ICAT 3" Housing IC Air-Tite Shallow Ceiling 120V Line Voltage, GU10

Manufacturer: Cooper Lighting | Catalog # H36ICAT | Echo Electric Part # 156778
$111.70/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
The H36ICAT is a shallow IC AIR-TITE™ fixture for use with H3 3” series trims. Housing is AIR-TITE rated to prevent airflow between heated or air conditioned spaces and unconditioned attic/plenum areas. For use with 120V GU10 lamps. H36ICAT is IC rated and may be used in insulated ceilings and be covered with insulation.

Technical Information

Amperage
0.417 Amp
Aperture Size
3 in
Applications
Lighting
Ballast Type
N/A
Mounting Type
Recessed
Number of Lamps
1
Style
(blank)
Type
3" H3 Housing
Voltage
120 Volt

Manufacturer Information

Brand
Halo
Sub Brand
H36ICAT Series

General Product Info

12-Digit UPC
623961361302
Finish
Raw Finish
GTiN
00623961361302
Product UPC
62396136130
Weight
4.85 lb

Dimensions

Diameter
3 Inch
Height
5-1/2 Inch
Length
14-1/4 Inch
Width
16.5 in

Certifications and Compliance

ARRA Compliant
Yes
Country of Origin
Mexico
Features
  • 14.25 IN Length 16.5 IN Width 5.5 IN Height
  • Got-Nail™ bar hangers on new construction housings
  • Pass-N-Thru™ tool less shortening of bar hangers
  • Slide-N-Side™ wire traps
  • Quick Connect wiring connectors included in junction box
  • AIR-TITE™
  • Thermally protected
  • Die-formed housing and plaster frame
  • Housing may be removed from plaster frame for junction box access
