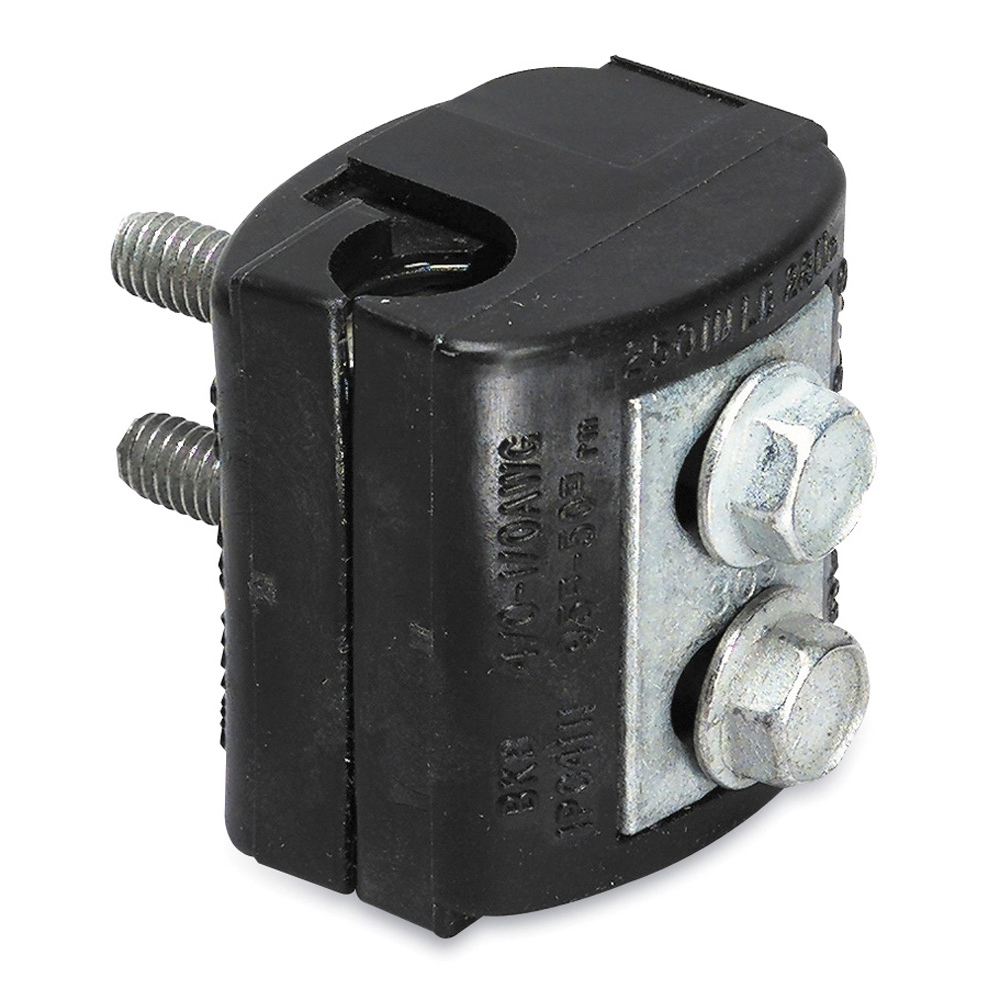

Blackburn IPC5041 Insulated Piercing Connector

Manufacturer: Thomas & Betts Co | Catalog # IPC5041 | Echo Electric Part # 157480
$31,854.14/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Type IPC - Talon Insulation Piercing Connector for Conductor Range Main: 500-350 AWG, 240-185 MM sq., Tap: 4/0-4 AWG, 90-25 MM sq.

Technical Information

Applications
For Copper to Copper, Copper to Aluminum and Aluminum to Aluminum Applications
Conductor Size
350 - 500 kcmil Main/Primary, 4/0-4 AWG Tap/Secondary
Number of Ports
1
Standard
UL E9809
Temperature Rating
90 degrees C
Type
Insulated
Voltage
600 Volt

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786331130
Color
Black
GTiN
05415022505764
Product UPC
78378633113
Used With
90 C Maximum
Features
  • Self-insulated for hot line applications. Six sizes cover range from #10 to 500 kcmil.
  • For copper-to-copper, copper-to-aluminum and aluminum-to-aluminum applications (insulated conductor only). Performs as splice or tab for non-tension applications up to 600 volts, depending on size of connector.
