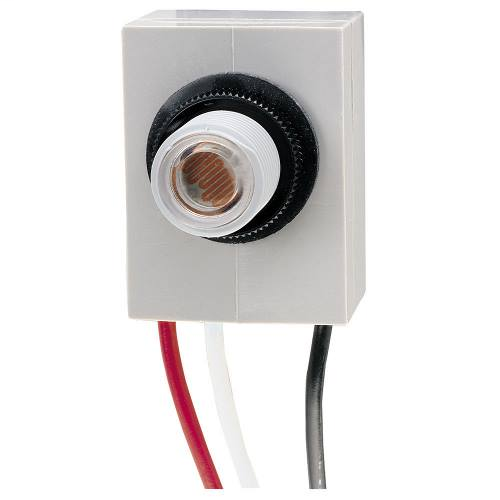

Product image for Intermatic K4035 480 Volt 50/60 Hz 7200 W Fixed Position Mounting
Email

Intermatic K4035 480 Volt 50/60 Hz 7200 W Fixed Position Mounting

Manufacturer: Intermatic, Inc | Catalog # K4035 | Echo Electric Part # 158110
$38.41/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
26 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet
These photocontrols install within lighting fixtures, post lamps, or in-wall boxes to provide dusk-to-dawn ON/OFF control of outdoor lighting.

Technical Information

Applications
Dusk to Dawn Lighting Control
Connection Type
Color Coded Lead
Frequency
50/60 Hz
Input Voltage
480 V
Max Operating Temperature
158 degrees F
Max Wire Size
18 AWG
Min Operating Temperature
-40 degrees C
Mounting Type
Button Fixed Mount
Operating Temperature
158 degrees F
Power Consumption
1 W
Size
1-13/16 LENGTH X 1-5/16 WIDTH X 1-9/16 DEPTH IN, 4.6 LENGTH X 3.3 WIDTH X 4 DEPTH CM
Standard
CSA,California Title 24 Compliant,Title CA 20 Listed
TC Connection
Color Coded Lead
Type
Thermal Type Photo Cell
Wire Length
228.6 mm

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275530041
Color
Gray
GTiN
00078275530041
Product UPC
07827553004
Weight
0.279 lb

Dimensions

Depth
20.6 mm
Height
46 mm
Warranty Length
2 yr
Width
23.8 mm
Features
  • Mechanical bimetal switch with Cadmium Sulfide photocell
  • Compact size fits into standard outlet box, post lamp, wall pack and other lighting fixtures
  • Delay feature prevents unwanted OFF switching
  • 3?8\"-18 NPSM, \" long stem with locking nut and washer gasket
  • K4321C includes weatherproof wall plate and neoprene gasket
Applications
  • Exterior Lighting
  • Street Lighting
  • Parking Lot
  • Pedestrian Pathway
  • Landscape Lighting
Related Accessories and Parts
  • 6LV1352 K43-WP-KIT
