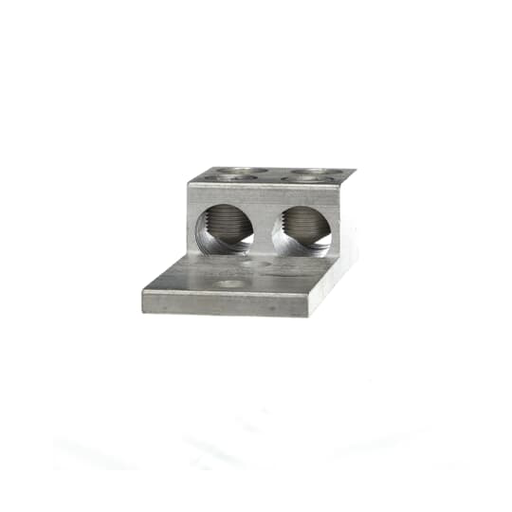

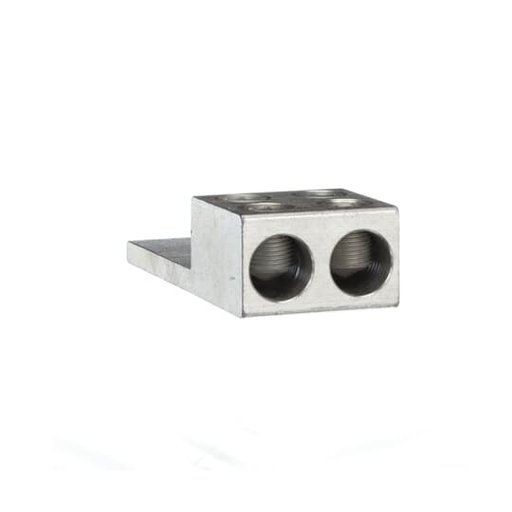

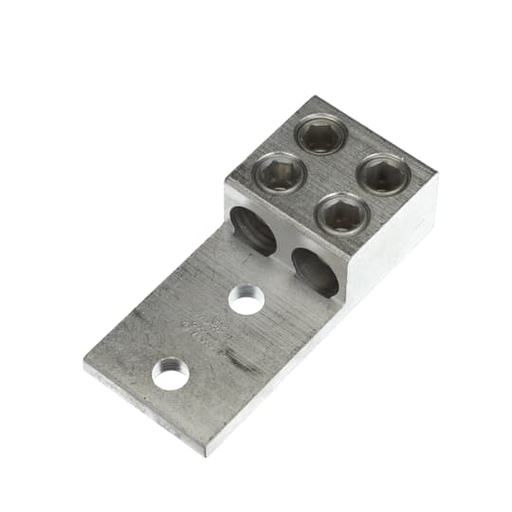

Blackburn ADR60-22D Extruded Aluminum Lug

Manufacturer: Thomas & Betts Co | Catalog # ADR60-22D | Echo Electric Part # 158340
$7,874.57/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page
Type ADR-ALCUL Two-Conductor, Two-Hole Mount, Conductor Range 2 Str-600 kcmil, Length 5-5/16 Inches, Width 2-3/4 Inches, Height 1-1/2 Inches, 1/2 Inch Bolt Hole, 1-3/4 Inch Centers, Tin Plated

Technical Information

Bolt Size
1/2 in
Conductor Size
2 AWG-600 kcmil
Conductor Type
Aluminum and Copper
Material
Aluminum
Number of Conductors
2
Standard
UL E9809
Type
Dual-Rated

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786610341
Finish
Tin Plated
GTiN
05415022398250
Product UPC
78378661034

Dimensions

Length
5-5/16 Inch
Features
  • Easy Installation - no special tools required.
Certifications
  • UL
  • CSA
Notes
  • Connectors accomodating conductors 600 kcmil and larger have double rows of set screws (D suffix).
  • UL 486B tested, AL9CU rated
  • NEMA spacing 1 3/4 inch centers.
