Klein 56014 3/16" x 200' Fiberglass Fish Tape

Manufacturer: Klein Tool | Catalog # 56014 | Echo Electric Part # 158566
$354.98/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 13 to 21 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet

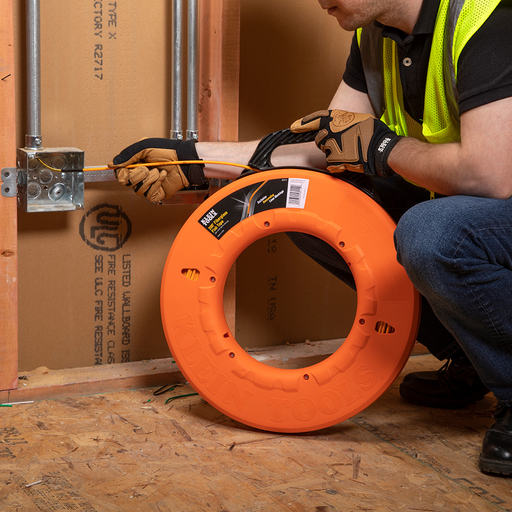

Designed for even longer conduit runs, the Klein Tools 200-foot (60.96 m) Fiberglass Fish Tape is flexible enough to glide over existing wires in crowded conduit, but stiffer than other non-conductive fish tapes. The 17-Inch (432 mm) case diameter allows user to reel in 10-percent more tape in a single revolution than 16-Inch (406 mm) diameter fish tape cases, saving time and effort.

Technical Information

Applications
For Flexibility and Easy Navigation Through Conduit Runs
Material
Fiberglass
Tensile Strength
500 lb
Type
Fiberglass Fish Tapes
Wire Size
3/16 in

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644560149
GTiN
00092644560149
Product UPC
09264456014
Weight
6.200 lb

Dimensions

Depth
20-1/2 Inch
Diameter
17 Inch
Height
2 Inch
Length
200 Foot
Width
2.500 in

Certifications and Compliance

CA Prop65 Warning
WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Country of Origin
USA
Features
  • Permanent, laser etched 1-foot increments on the tape allow you to more accurately measure the depth of conduit runs and determine the amount of tape left to pay out
  • Non-conductive, fiberglass fish tape slides easily over existing wires and through multiple bends
  • The lightweight and strong fiberglass tape resists harsh elements and is strength rated up to 500 pulling pounds
  • The 17-Inch case diameter means you can reel in 10-percent more tape in a single revolution vs. a 16-Inch (406 mm) case
  • Durable 7-Inch leader helps push through crowded conduit
  • Raised fingergrips help transfer 100-percent of the winding power from your hand and fingers

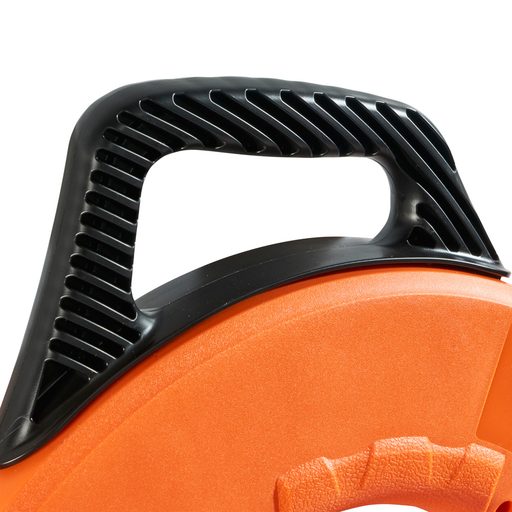

  • The unique sloped handle optimizes the position of your hand for quick hand-over-hand rewinds and allows a more level payout of tape on the backswing while feeding conduit
  • Made in the USA
  • Repair kit available (Cat. No. 56115)
  • Replacement eyelets (Cat. No. 56116) and spiral leaders (Cat. No. 56120) available
  • Made in USA
  • Raised finger grips help transfer 100-percent of the winding power from your hand and fingers
Warnings
  • Wear approved eye protection when feeding, pulling or rewinding fish tape.
  • Although fiberglass fish tape itself is non-metallic, its metallic tip and leader are conductive and could be grounded against conduit. Do NOT use on or near live electrical circuits.
  • Do NOT pull a fiberglass fish tape with any type of mechanical fish-tape puller. A mechanical puller will severely damage the tape, and could lead to personal injury.
  • Use a safe work position to avoid loss of balance when using fish tape.
  • Do NOT bend a fiberglass fish tape to a radius smaller than 3'' (76 mm) or the tape may break.
  • Never remove screws while fish tape is coiled inside reel.
