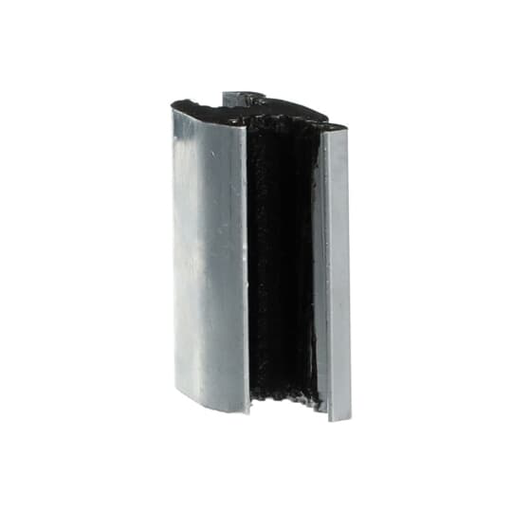

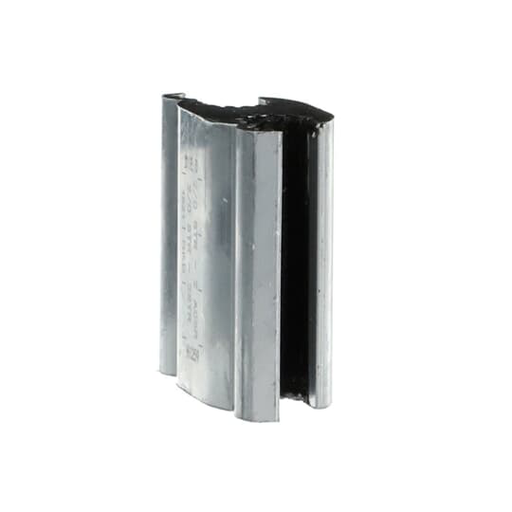

Blackburn WR259 Compression Connector

Manufacturer: Thomas & Betts Co | Catalog # WR259 | Echo Electric Part # 158768
$6.79/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
81 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Safety Data Sheet Product Catalog Page
Aluminum Wide Range H-Type Compression Connector Main: 1/0 - 2 ACSR, 2/0 - 1 Str., Tap: 1/0 - 2 ACSR, 2/0 - 2 Str., Die: D, D3

Technical Information

Applications
For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Material
Aluminum
Number of Conductors
2
Size
Length 1-7/8 inch
TC Connection
Compression
Temperature Rating
90 degrees C
Type
Wide-Range, Parallel, Short Sleeve
Wire Size
Main: 1/0-2 ACSR or 2/0-1 STR AWG ; Tap: 1/0-2 ACSR or 2/0-2 STR AWG

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786100040
Environmental Conditions
All Seasons / Conditions
Finish
Tin Plated
GTiN
00783786100040
Product UPC
78378610004
Used With
Round, Solid and Stranded Conductors, Combinations of Aluminum to Copper, and Aluminum to Aluminum Conductors

Dimensions

Length
1-7/8 Inch
Features
  • Fold-in tabs provide positive tab interlock as tool closes.
  • RUS accepted and complies with ANSI C119.4
  • Enables excellent connector contact without distorting the conductor's shape.
  • Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.
