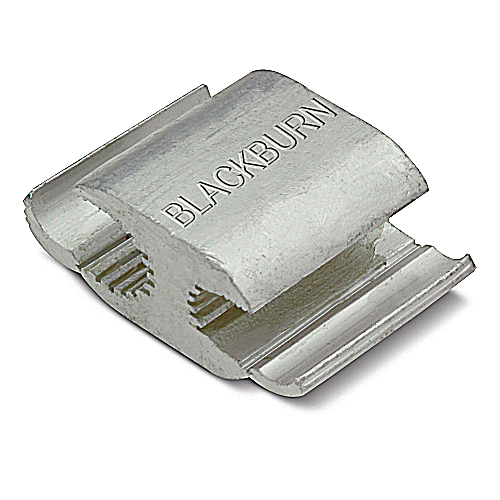

Product image for Blackburn WR359 Compression Connector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Blackburn WR359 Compression Connector

Manufacturer: Thomas & Betts Co | Catalog # WR359 | Echo Electric Part # 158831
$14.10/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Safety Data Sheet Product Catalog Page
Aluminum Wide Range H-Type Compression Connector Main: 4/0 - 3/0 ACSR, 4/0 - 3/0 Str., Tap: 4-6 ACSR, 3-6 Str., 2-6 Sol., Die: D, D3

Technical Information

Applications
For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Connection Type
Compression
Insulated?
No
Material
Aluminum
Mounting Type
None
Number of Conductors
2
Size

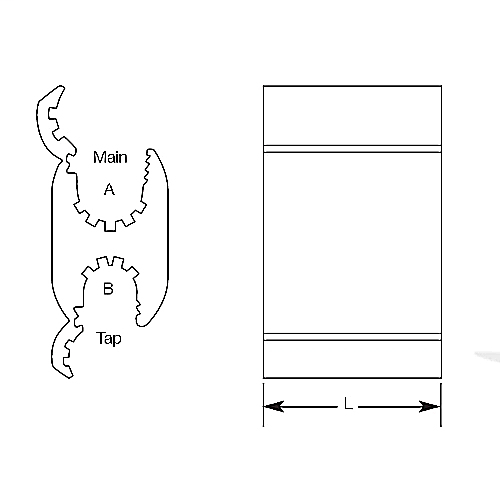

Length 1-7/8 inch
TC Connection
Compression
Temperature Rating
90 degrees C
Type
Wide-Range, Parallel, Short Sleeve
Wire Size
Main: 4/0-3/0 ACSR or 4/0-3/0 STR AWG ; Tap: 4-6 ACSR or 3-6 STR or 2-6 SOL AWG

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786100088
Box Quantity
250
Finish
Tin Plated
GTiN
00783786100088
Product UPC
78378610008
Used With
Round, Solid and Stranded Conductors, Combinations of Aluminum to Copper, and Aluminum to Aluminum Conductors

Dimensions

Length
1-7/8 Inch
Features
  • RUS accepted and complies with ANSI C119.4
  • Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.
  • Fold-in tabs provide positive tab interlock as tool closes.
  • Enables excellent connector contact without distorting the conductor's shape.
Notes
  • Will accept standard conductors of the same size with a 3 percent reduction of compressed diameter.
