Hubbell HBL2613BK Locking Connector, 30A 125V, L5-30R, BK

Manufacturer: Hubbell Wiring Device | Catalog # HBL2613BK | Echo Electric Part # 158893
$99.28/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, Black.

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Conductor Size
12-8 AWG
Current
30 Amp
Grounding
Grounding
Material
Nylon
Mounting Type
Cord
NEMA

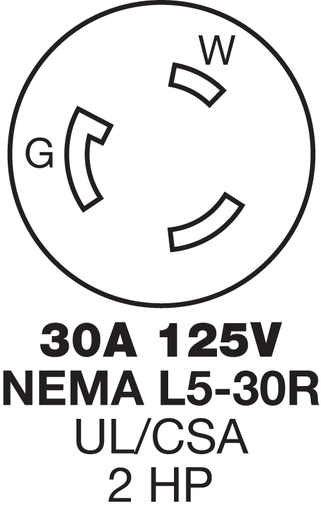

L5-30R
Number of Conductors
3-Wire Grounding
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Pressure Screw Terminal
Temperature Rating
-25 to 75 degrees C
Type
Standard
Voltage
125 Volt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585172217
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585172217
Product UPC
78358517221
Weight
0.30 lb

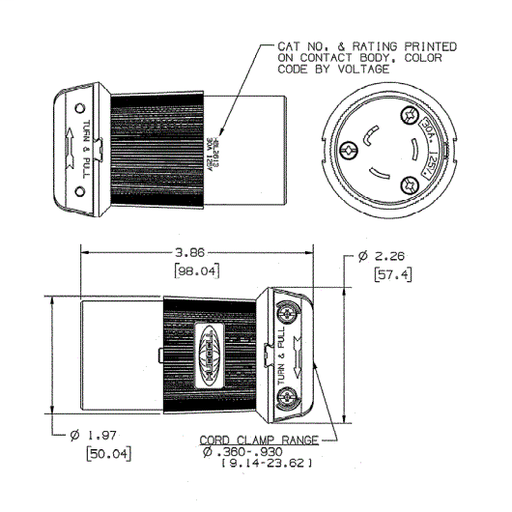

Dimensions

Height
3.86 Inch
Length
2.26 Inch
Width
2.26 in

Certifications and Compliance

Country of Origin
USA
Features
  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Standard Product
