3M 5302 (3 Splices/Kit) Motor Lead Splicing Kit

Manufacturer: 3M | Catalog # 7000005806 | Echo Electric Part # 159046
$15,116.60/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Safety Data Sheet Product Catalog Page
The 3M™ Motor Lead Pigtail Splice Kit makes three splices. Lugs are not included in kits. Feeder of 2-1/0 AWG (35-50 sq mm), motor lead 4-1/0 AWG (25-50 sq mm).

Technical Information

Applications
Cross Linked Polyethylene Cable,Ethylene Propylene Rubber Cable,For Insulating And Sealing Motor Lead Connections For Copper Conductors,Polyethylene Cable
Cable Size
2. - 0
Connection Type
Pigtail
Splice Type
Pigtail Only
Type
Pigtail Splice
Voltage
1 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007122647
Color
Black
GTiN
00054007122647
Product UPC
05400712264

Certifications and Compliance

Country of Origin
USA
Features
  • Splices motor lead cables to incoming feeder cables
  • Designed to use with copper compression, 1-hole lugs

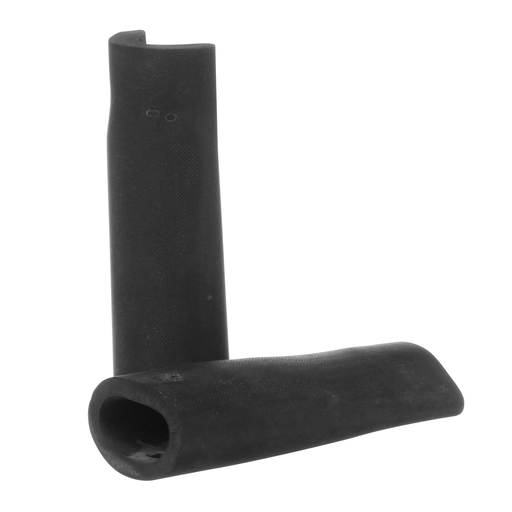

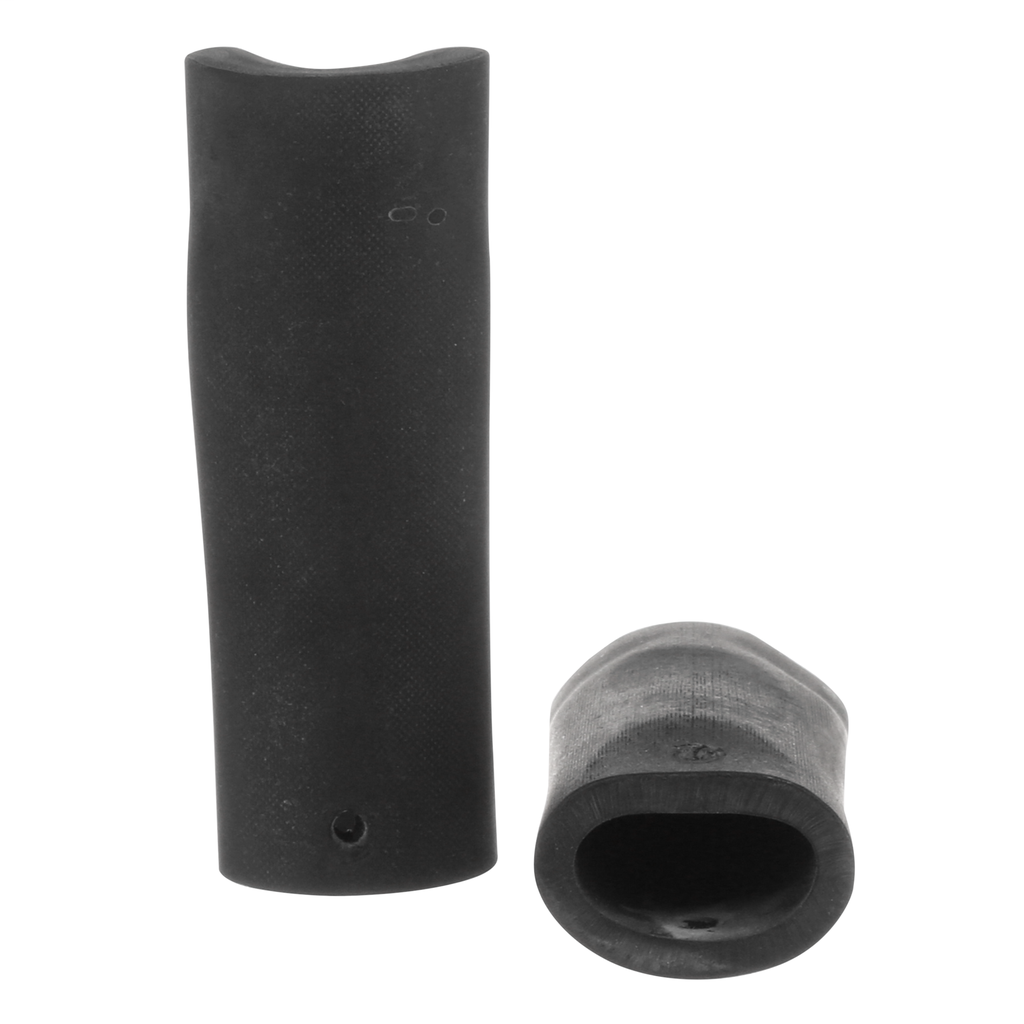

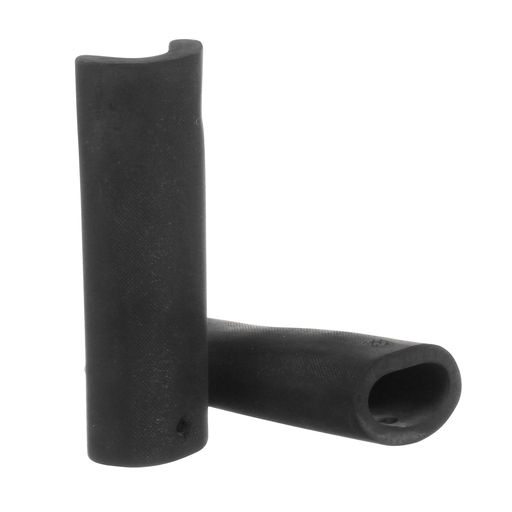

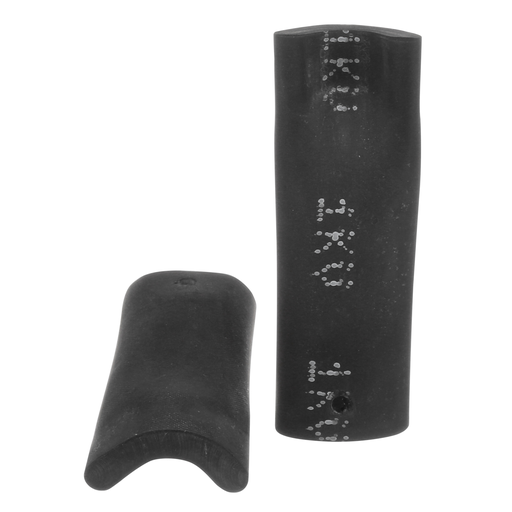

  • Slip-on lug cover is made of durable EPDM rubber
  • For pigtail (stub) connections at 1000V or less
  • Includes 3 each of pigtail lug covers, mastic sealing strips, and tubes of silicone grease, plus an instruction sheet
  • CSA Certified and RoHS 2011/65/EU Compliant
