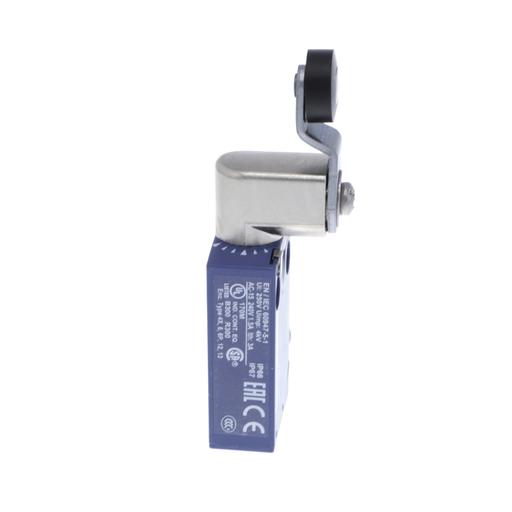

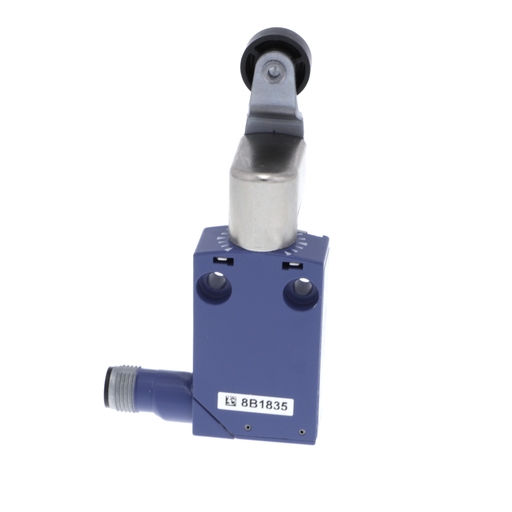

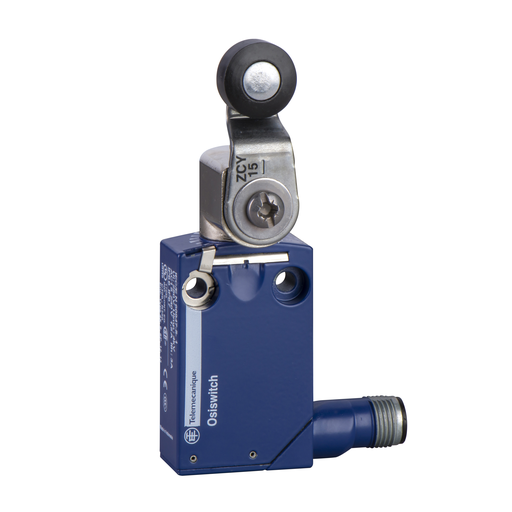

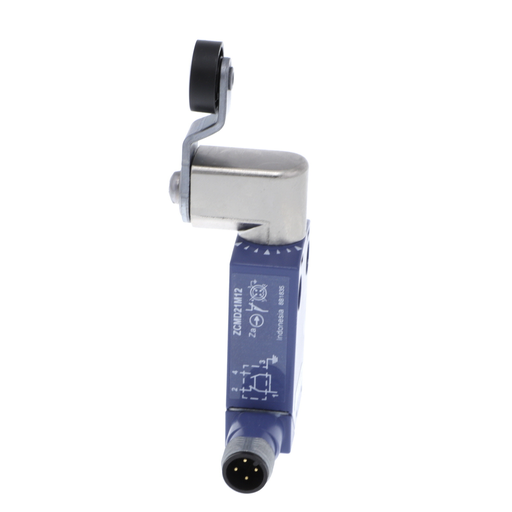

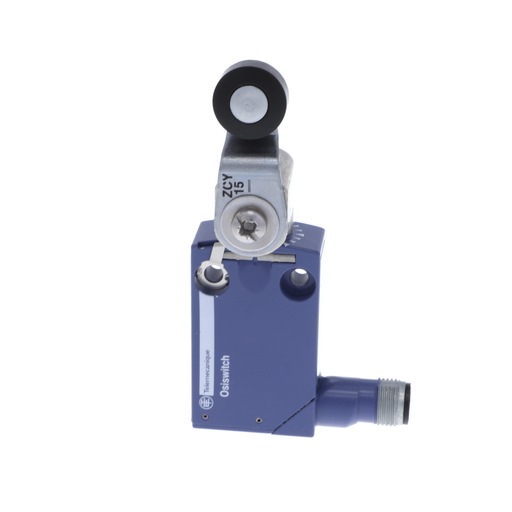

Product image for TES XCMD2115C12 Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1NC+1 NO, snap, M12
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

TES XCMD2115C12 Limit switch, Limit switches XC Standard, XCMD, thermoplastic roller lever, 1NC+1 NO, snap, M12

Manufacturer: TESENSOR | Catalog # XCMD2115C12 | Echo Electric Part # 159150
$132.43/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This XCMD miniature format limit switch has a thermoplastic roller lever and a Zamak body. This limit switch has a robust Zamak miniature and modular body, is pre-cabled, allowing an easier installation. It is IP66 and IK06 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.

Technical Information

Action
Snap action;By 30? cam
Actuator
Rotary
Amperage
0.22 Amp 50 V, DC-13 EN/IEC 60947-5-1 APPENDIX Amp-3 Amp 50 V, AC-15 EN/IEC 60947-5-1 APPENDIX Amp
Body Material
Zamak
Body Type
Plug-in body
Contact Configuration
1 NC + 1 NO
Head Type
Rotary head
Material
Metal
Net Weight
0.125 kg
Number of Poles
2 Pole
Operating Temperature
-25-70 Adegrees C
Size
0.63 in
Standard
CSA C22.2 No 14,EN/IEC 60204-1,EN/IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
MALE CONNECTOR M12, 5 PINS
Type
Limit switch

Manufacturer Information

Brand
Telemecanique
Sub Brand
XCMD

General Product Info

12-Digit UPC
785901913245
GTiN
03389110221329
Product UPC
78590191324
Weight
0.28 lb

Dimensions

Depth
16 mm
Height
50-50 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,UL
Country of Origin
Indonesia
