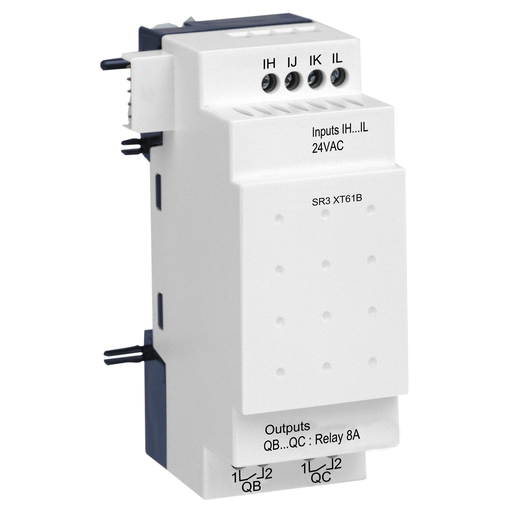

SQUARED SR3XT61B Discrete I/O exten

Manufacturer: Square-D / Schneider | Catalog # SR3XT61B | Echo Electric Part # 159341
$229.85/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Schneider Electric Zelio Logic SR3 Discrete I/O Extension Module Smart Relays uses a supply voltage of 24 volts alternating current, has 6 inputs / outputs contact with screw-clamp terminals. This Discrete I/O Extension Module Smart Relays provides Zelio Logic relays with additional inputs and outputs. It has a compact form-factor, allowing installation on DIN rail. Simple ladder programming, adapted for non-specialists. Discovery package, coming with Zelio Soft programming software, the simplest way to learn and use this relay. Built-in EEPROM flash memory for data backup up to 10 years, easy-to-recover after a power shortage or incident. More I/O than SR2 model, for larger applications. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-5, EN/IEC 61000-4-12 and EN/IEC 61000-4-4 L3 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.

Technical Information

Contact Configuration
NO RELAY OUTPUT
Contact Rating
>= 10 MA 12 V RELAY OUTPUT)
Enclosure
IP20 (TERMINAL BLOCK) CONFORMING TO IEC 60529-IP40 (FRONT PANEL) CONFORMING TO IEC 60529
Net Weight
0.125 kg
Number of Outputs
2 Relay
Operating Cycles
0.1 HZ AT IE)RELAY OUTPUT-10 HZ NO LOAD)RELAY OUTPUT
Operating Temperature
-20-40 degrees C In Non-ventilated Enclosure IEC 60068-2-1 And IEC 60068-2-2 || -20-55 degrees C IEC 60068-2-1 And IEC 60068-2-2
Response Time
50 ms ladder from state 0 to state 1)discrete input;50 ms ladder from state 1 to state 0)discrete input;50...255 ms FBD from state 0 to state 1)discrete input;50...255 ms FBD from state 1 to state 0)discrete input;10 ms from state 0 to state 1)relay output;5 ms from state 1 to state 0)relay output
Standard
IEC 60068-2-27 Ea,IEC 60068-2-6 Fc,IEC 61000-4-11,IEC 61000-4-12,IEC 61000-4-2 Level 3,IEC 61000-4-3,IEC 61000-4-4 Level 3,IEC 61000-4-5,IEC 61000-4-6 Level 3
Storage Temperature
-40-70 degrees C
TC Connection
SCREW TERMINALS, 1 X 0.25...1 X 2.5 MMA AWG 24...AWG 14) FLEXIBLE WITH CABLE END-SCREW TERMINALS, 2 X 0.25...2 X 0.75 MMA AWG 24...AWG 18) FLEXIBLE WITH CABLE END-SCREW TERMINALS, 1 X 0.2...1 X 2.5 MMA AWG 25...AWG 14) SEMI-SOLID-SCREW TERMINALS, 1 X 0.2...1 X 2.5 MMA AWG 25...AWG 14) SOLID-SCREW TERMINALS, 2 X 0.2...2 X 1.5 MMA AWG 24...AWG 16) SOLID
Type
Discrete I/O extension module

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZELIO LOGIC 2

General Product Info

12-Digit UPC
785901693833
Environmental Conditions
EMC DIRECTIVE EN/IEC 61000-6-2-EMC DIRECTIVE EN/IEC 61000-6-3-EMC DIRECTIVE EN/IEC 61000-6-4-EMC DIRECTIVE EN/IEC 61131-2 ZONE B-LOW VOLTAGE DIRECTIVE EN/IEC 61131-2
GTiN
03389110550177
Product UPC
78590169383
Weight
0.125 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
C-tick,CSA,GL,GOST,UL
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
