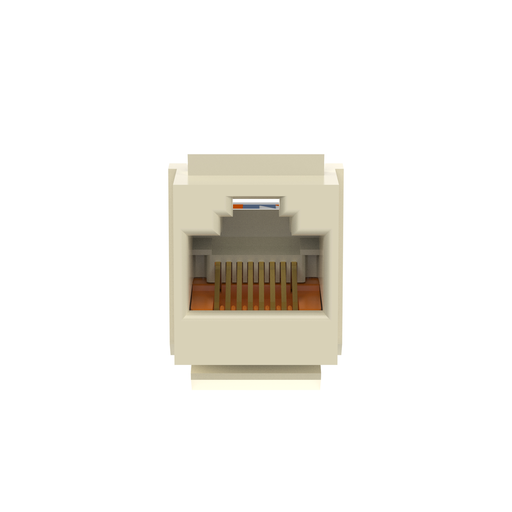

Product image for Panduit NK5E88MEIY NetKey Cat 5e Leadframe Jack, Electric Ivory
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Panduit NK5E88MEIY NetKey Cat 5e Leadframe Jack, Electric Ivory

Manufacturer: Panduit Corp | Catalog # NK5E88MEIY | Echo Electric Part # 159343
$12.66/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet Installation / Instruction Manual

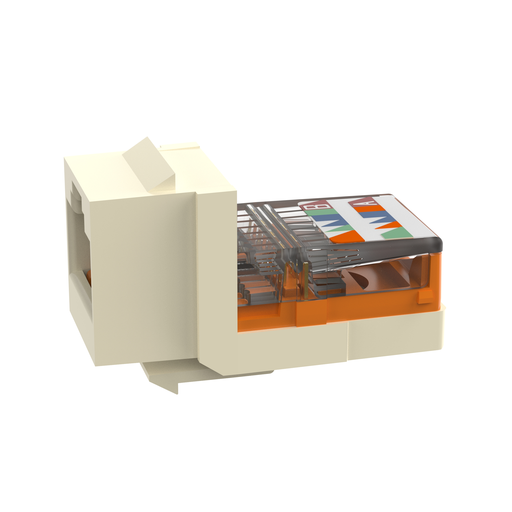

The NetKey® Cat 5e UTP RJ45 Leadframe Keystone Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with keystone interfaces including NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. This jack module is electric ivory.

Technical Information

Applications
10BASE-T, 100BASE-T, and 1000BASE-T Ethernet, 4/16 Token Ring, Voice over Internet Protocol (VoIP)
Cable Size
24-22 AWG
Cable Type
Category 5e
Material
ABS Plastic
Max Operating Temperature
149 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 5e
Temperature Rating
-10 to 65 degrees C
Type
Keystone, Universal, Unshielded, 8-Wire

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
NetKey

General Product Info

12-Digit UPC
074983054992
Color
Electric Ivory
GTiN
00074983054992
Product UPC
07498305499
UNSPSC
43223301
Used With
T568A/T568B Cable

Dimensions

Depth
1.37 Inch
Height
22.1 mm
Overall Length
34.8 mm
Width
16.5 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China
Standards and Certifications
  • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
