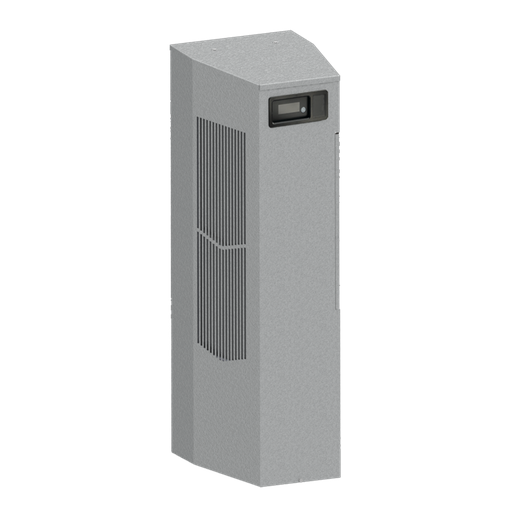

Product image for Hoffman N360646G050 SPECTRACOOL Compact Indoor, 6000BTU 460V 3~
Email

Hoffman N360646G050 SPECTRACOOL Compact Indoor, 6000BTU 460V 3~

Manufacturer: nVent Hoffman | Catalog # N360646G050 | Echo Electric Part # 159419
$5,008.67/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Safety Data Sheet
SpectraCool Narrow Indoor/Outdoor Air Conditioners provide the same broad spectrum of cooling capacity and options and the SpectraCool Indoor/Outdoor units in a more narrow, space-saving solution for low-depth cabinet needs. Narrow models are designed to fit on 12-inch (300-mm) deep floor- and wall-mount enclosures.

Technical Information

Amperage
1.69 Amp
Applications
For Industrial Automation, Waste Water Treatment Systems, Package Handling Equipment, Security and Defense Systems
BTU Hour
6000 BTU
Color Coding
RAL 7035
Control Type
Mechanical Thermostat
Enclosure Rating
4X, IP34, IP56
Enclosure Type
NEMA 4X, IP34, IP56
Material
Stainless Steel
Max Current
1.69 A
Max Temperature
131 degrees F
Min Temperature
-40 degrees F
Power Rating
1757 W
Standard
CE,IP 34 On External Loop,IP 56 Internal Loop,Telcordia GR-487 Capable (Outdoor),UL/cUL Listed; Type 12, 3R, 4; 4X Optional; File No. SA6453
Temperature Rating
-40 to 131 degrees F
Type
Narrow, Compact
Voltage
460
Wattage
1757 Watt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Spectracool

General Product Info

12-Digit UPC
783510219239
Color
RAL 7035 Light Gray/Semi-Textured Powder Coated
Finish
Powder Coated
GTiN
00783510219239
Product UPC
78351021923
Weight
111 lb

Dimensions

Depth
14 Inch
Height
36 Inch
Length
17-3/4 Inch
Thickness
1.21 mm
Width
11.5 in
Features
  • Narrow design accommodates 12-inch (300-mm) deep cabinets
  • Level 1 Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
  • Attractive industrial design with minimal use of visible fasteners
  • Level 2 Protection Include: Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
  • Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
  • Narrow design accommodates 12-inch deep cabinets
  • R407C, R513A or R134a refrigerants
  • Models for 115, 230 and 400/460 3-phase VAC power input
  • Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)
  • Reliable mechanical thermostat on enclosure side of the unit; indoor air conditioner models include digital display on ambient side
  • Energy efficient rotary compressor on N36 and N43 models
  • Dust-resistant condenser coil allows the unit to be run filterless in most applications
  • Galvanized sheet-metal cover for rugged factory and outdoor environments
