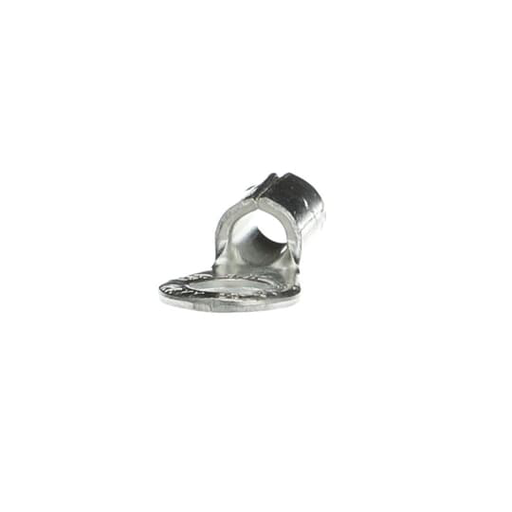

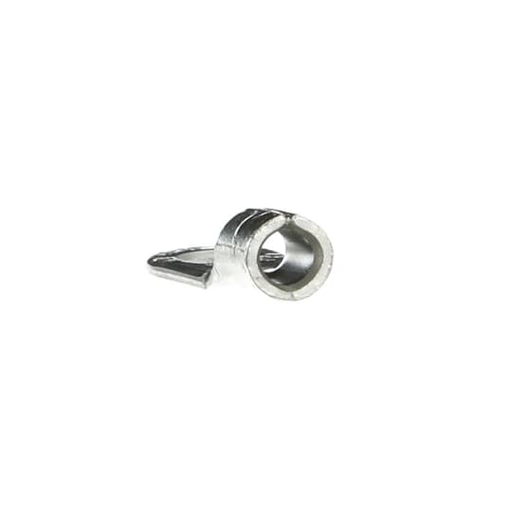

Thomas & Betts E72 Non-Insulated Large Ring Terminal - #6, 5/16"bolt (200/Pkg)

Manufacturer: Thomas & Betts Co | Catalog # E72 | Echo Electric Part # 159428
$291.10/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page
Non-Insulated Large Brazed Seam Ring Terminal, Length 1.32 Inches, Width .60 Inches, Bolt Hole 5/16 Inch, Wire Range #6 AWG, Copper, Tin Plated, 200 Pack

Technical Information

Barrel Type
Brazed Seam
Conductor Size
6 AWG
Insulation Type
Non-Insulated - Brazed Seam
Material
Copper
Standard
UL E9809
Stud Size
5/16 in
Temperature Rating
150 degrees C
Type
Short Sleeve
Voltage
600 Volt
Wire Size
6 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210811925
Color
Metallic
Finish
Electro Tin Plated
GTiN
05414363934776
Product UPC
78621081192
Features
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
Notes
  • Not available on Mylar Tape.
