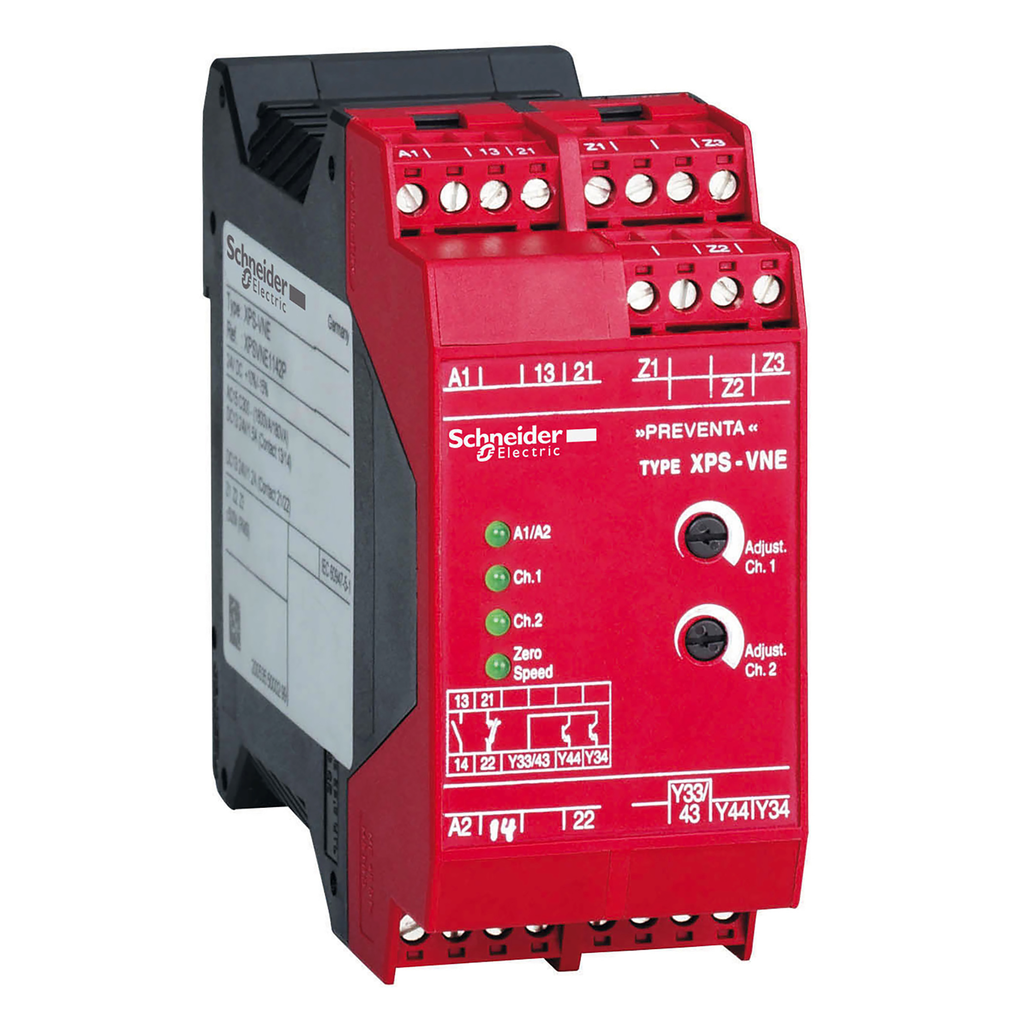

Product image for SQUARED XPSVNE1142P module XPSVN -
Image thumbnail 0
Image thumbnail 1
Email

SQUARED XPSVNE1142P module XPSVN -

Manufacturer: Square-D / Schneider | Catalog # XPSVNE1142P | Echo Electric Part # 159531
$605.35/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
This XPSVNE safety module is for zero-speed detection. It meets the requirements of PL c/Category 2 conforming to EN/ISO 13849-1.and SILCL1 conforming to EN/IEC 61508 and EN/IEC 62061. Used in conjunction with XU2S single-beam photo-electric sensors (periodically tested), it establishes a category 2 light curtain conforming to IEC/EN 61496 parts 1 and 2. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has additional solid-state output for communication with PLCs about safety status of your process.

Technical Information

Applications
Monitoring 3-phase motor with star-delta starting;Monitoring 3-phase motor with variable number of poles and star-delta starting;Monitoring 3-phase motor + variable speed drive;Monitoring 3-phase motor;Monitoring XPS AK;Monitoring star-delta motor starter and guard switch type XCS E;Monitoring dc motor;For zero speed detection
Contact Configuration
RELAY 1 NO + 1 NC
Contact Rating
1.2 A 24 V DC-13)50 MS NC RELAY OUTPUT CIRCUIT-1.5 A 24 V DC-13)50 MS NO RELAY OUTPUT CIRCUIT-10 MA 48 V SOLID STATE OUTPUT CIRCUIT-20 MA 24 V SOLID STATE OUTPUT CIRCUIT,180 VA HOLDING AC-15 C300 RELAY OUTPUT-1800 VA INRUSH AC-15 C300 RELAY OUTPUT
Enclosure
IP20 CONFORMING TO EN/IEC 60529(TERMINALS), IP40 CONFORMING TO EN/IEC 60529(ENCLOSURE)
Input Voltage
500 V
Net Weight
0.5 kg
Output
2 solid state outputs
Power Supply
24 V DC - 15...10 ,3.5 W
Standard
EN/IEC 60204-1,EN/IEC 60947-5-1
Storage Temperature
-25-85 degrees C
TC Connection
CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK FLEXIBLE 0.2...1.5 MMA WITHOUT CABLE END, 2 WIRES-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK FLEXIBLE 0.2...2.5 MMA WITHOUT CABLE END, 1 WIRE-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK FLEXIBLE 0.25...1 MMA WITH CABLE END, WITHOUT BEZEL, 2 WIRES-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK FLEXIBLE 0.25...2.5 MMA WITH CABLE END, WITH BEZEL, 1 WIRE-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK FLEXIBLE 0.25...2.5 MMA WITH CABLE END, WITHOUT BEZEL, 1 WIRE-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK FLEXIBLE 0.5...1.5 MMA WITH CABLE END, WITH DOUBLE BEZEL, 2 WIRES-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK SOLID 0.2...1 MMA WITHOUT CABLE END, 2 WIRES-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK SOLID 0.2...2.5 MMA WITHOUT CABLE END, 1 WIRE
Type
Preventa safety module

Manufacturer Information

Brand
Telemecanique
Sub Brand
PREVENTA

General Product Info

12-Digit UPC
389119004216
GTiN
03389119004213
Product UPC
78590161761
Weight
1.10 lb

Dimensions

Depth
114 mm
Height
99 mm
Warranty Length
18 mth
Width
45 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,TV,UL
Country of Origin
Indonesia
