Thomas & Betts RA713 Nylon-Insulated Ring Terminal - #22-16, 1/4"bolt (1000/Box)

Manufacturer: Thomas & Betts Co | Catalog # RA713 | Echo Electric Part # 159768
$103.21/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page

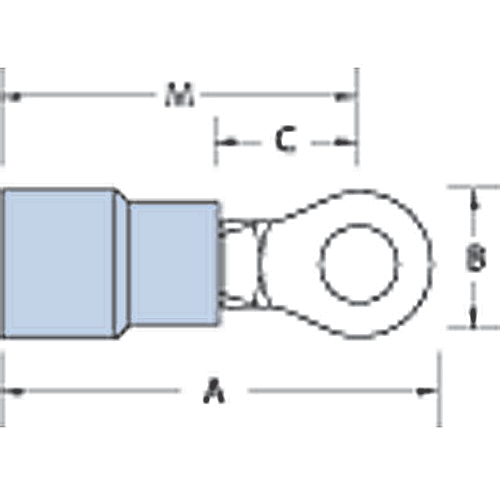

Nylon Insulated Ring Terminal, Length 1.10 Inches, Width .46 Inches, Maximum Insulation .136, Bolt Hole 1/4 Inch, Wire Range #22-#16 AWG, Color Red, Tin Plated, 1,000 Pack

Technical Information

Conductor Size
22-16 AWG
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
1/4 in
Temperature Rating
105 degrees C
Type
Nylon Insulated Ring Terminal
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210817187
Color
Red
Finish
Electro Tin Plated
GTiN
05414363157809
Product UPC
78621081718
Features
  • Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
