PHNX 2800674 VAL-MS-T1/T2 175/12.5/1+1-FM

Manufacturer: Phoenix Blocks | Catalog # 2800674 | Echo Electric Part # 159857
$483.62/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days

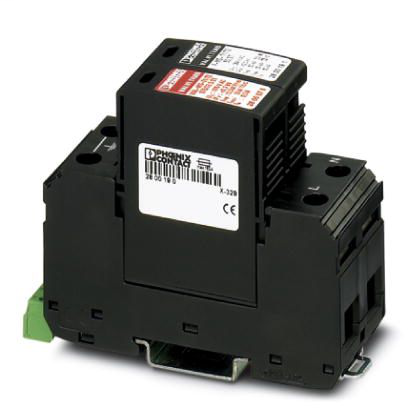

Universal varistor-based plug-in lightning/surge arrester for 1-phase power supply networks with separate N and PE (3-conductor system: L1, N, PE), with remote indication contact.

Technical Information

Operating Temperature
-40 degrees C

Manufacturer Information

Brand
Phoenix Products

General Product Info

12-Digit UPC
463566243364
Product UPC
46356624336

Dimensions

Height
96.8 mm
Width
35.6 mm
Approvals
  • CCA
  • cULus Recognized
  • EAC
  • IECEE CB Scheme
  • DNV GL
  • KEMA-KEUR
  • UL Recognized
  • cUL Recognized
Features
  • Plugs can be checked with CHECKMASTER
  • With floating remote indication contact
  • Secure hold of plugs in the event of high lightning current loads and strong vibrations thanks to new latching
  • Mechanical coding of all slots
  • Optical, mechanical status indication for the individual arresters
  • Pluggable
  • Thermal disconnect device for each individual plug
