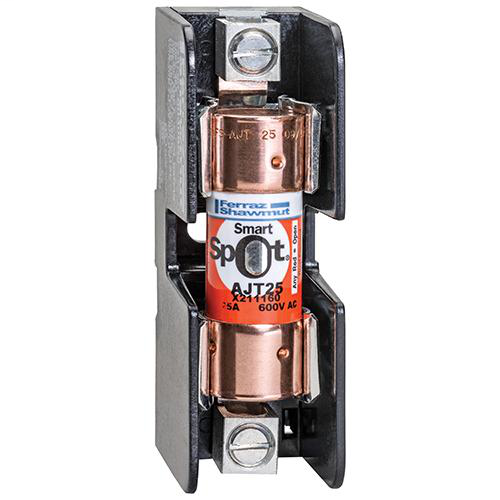

Product image for Mersen AJT5-6/10 600V 5-6/10A CLASS

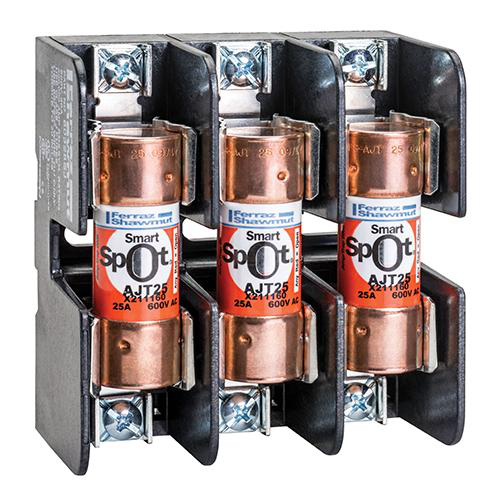

Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Mersen AJT5-6/10 600V 5-6/10A CLASS

Manufacturer: Ferraz Shawmut | Catalog # AJT5-6/10 | Echo Electric Part # 159911
$36.25/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.

Technical Information

Amperage
5.6 Amp
Applications
For Motor Circuits, Mains Feeders Branch Circuits, Lighting, Heaters, Transformers, Control Panels, Circuit Breaker, Back-Up Bus Duct Load Centers
Frequency
50 Hz
Fuse Class
Class J
Insulation Material
GMG
Interrupt Rating
200 kAIC
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
500 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Time-Delay
Voltage
600 VAC

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.
Sub Brand
Amp-Trap® 2000, SmartSpot

General Product Info

12-Digit UPC
782001962852
Class
J
GTiN
00782001962852
Product UPC
78200196285
Weight
0.2 lb

Dimensions

Diameter
0.81 Inch
Length
2-1/4 Inch
Approvals & Standards
  • UL listed to standard 248-8 File E2137
  • DC listed to UL standard 248
  • CSA certified to standard C22.2 No. 248.8
  • IEC 60269-2-1
  • UL listed
  • DC tested to UL standard 248
  • Approvals & Standards
Features
  • Non-indicating or solid state SmartSpot visual blown fuse indicator
  • Time-delay for motor starting and transformer inrush
  • 300kA interrupting rating - self-certified, UL witnessed tests
  • Extremely current-limiting for low peak let-thru current
  • Most current-limiting UL class fuse
  • Recommended for Arc Flash energy reduction
  • Small footprint requires less mounting space and allows smaller, more economical fuse blocks
  • Easy 2-to-1 selectivity for prevention of nuisance shutdowns
  • Unique Class J dimensions prevent replacement errors
  • High-visibility orange label gives instant brand recognition
  • Metal-embossed date and catalog number for traceability and lasting identification
  • Fiberglass body provides dimensional stability in harsh industrial settings
  • High-grade silica filler ensures fast arc quenching
  • Optional EI indicator/switch mount for AJT70 to 600 open fuse indication
Applications
  • Motor circuits
  • Mains
  • Feeders
  • Branch circuits
  • Lighting, heating & general loads
  • Transformers
  • Control panels
  • Circuit breaker back-up
  • Bus duct
  • Load centers
