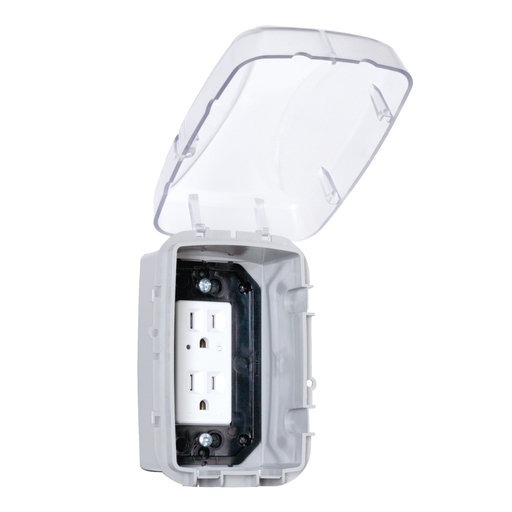

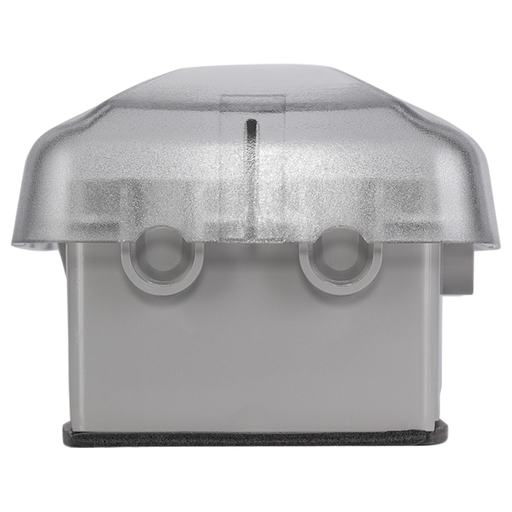

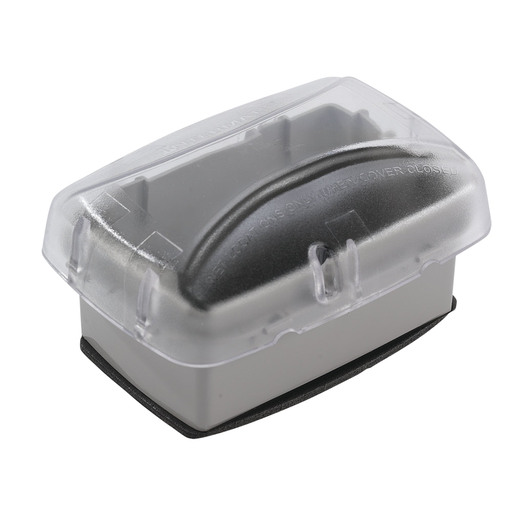

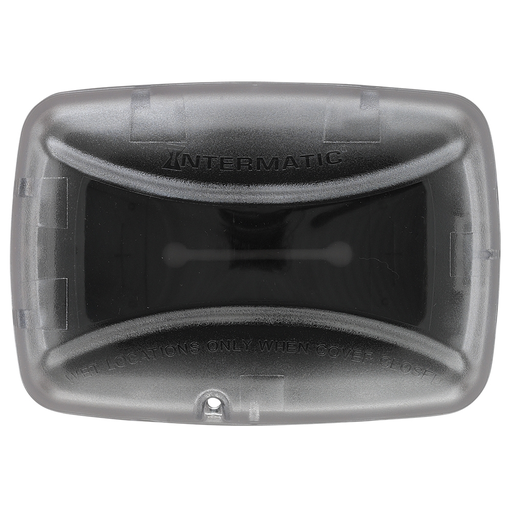

Intermatic WP3100C 1-Gang Receptacle In-Use Cover, Horizontal / Vertical, 2-3/4" Deep, Hidden Hinges - Clear

Manufacturer: Intermatic, Inc | Catalog # WP3100C | Echo Electric Part # 160591
$6.54/ea
ea
Log in or register to view your price, purchase history, and more!
82 available

For Pick Up

at Springfield, IL Opens Monday 7:00am CT
1,177 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet
Plastic In-Use Weatherproof Covers are easy to install and include adhered gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications.

Technical Information

Applications
Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage, Schools
Cable Size
(2) 14 Gauge, (1) 12 Gauge
Gang Type
Single
Insulation Material
Neoprene Gasket
Insulation Type
Neoprene Gasket
Material
Polycarbonate
Mounting Configuration
Mounting screws
Mounting Type
Vertical/Horizontal, Screw
Number of Gangs
1 Gang
Number of Outlets
1
Size
2-3/4 DEPTH IN, 69.85 DEPTH MM
Standard
2008 NEC Article 406.8,2011 NEC Article 406.9 (B1),UL/CSA Cold Impact Testing
Type
1-Unit, Receptacle, Rectangular
Voltage
146.6 Volt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275106093
Color
Clear, Gray
Construction
Heavy-Duty Polycarbonate
Construction Features
Heavy-Duty Polycarbonate
Finish
Matte
GTiN
00078275106093
Product Category
Home Improvement & Commercial Supplies - Wall Plates & Covers
Product Type
Home Improvement & Commercial Supplies - Wall Plates & Covers
Product UPC
07827510609
Shape
Rectangle
Used With
Commercial, home
Weight
0.4 lb

Dimensions

Depth
69.85 mm
Diameter
3 mm
Height
5-3/4 Inch
Length
70 mm
Warranty Length
1 yr
Width
4 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Complies with 2020 NEC Article 314.15 for damp and wet locations
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1?8\" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
  • Lockable hasp: All models accept up to 1?4\" (6 mm) dia shank, except WP3100C & WP3103C accept up to 1?8\" (3 mm) dia shank
  • Three inserts provided with all models that allow each model to meet multiple installations (up to 16 configurations)
  • Max cord size: (2) #14 AWG or (1) #12 AWG
  • Mounts vertically or horizontally
  • Warranty: 1-year limited
