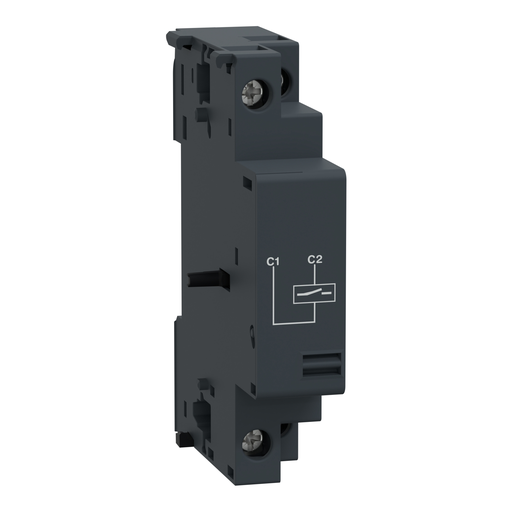

Product image for Square D GVAS116 110 to 115 VAC Manual Starter/Motor Circuit Breaker Shunt Trip Unit
Email

Square D GVAS116 110 to 115 VAC Manual Starter/Motor Circuit Breaker Shunt Trip Unit

Manufacturer: Square-D / Schneider | Catalog # GVAS116 | Echo Electric Part # 160853
$103.53/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys GV electrical trip, MX shunt release, 110-115V AC 60Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage is applied in limits 0.7-1.1 Uc with an impulse duration greater than 20ms or a maintained signal. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Technical Information

Applications
GV2L-GV2P-GV2LE-GV3L-GV2ME-GV3P,CONTROL
Net Weight
0.105 kg
TC Connection
SCREW CLAMP TERMINALS 1 0.75-2.5 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 1-2.5 MMASOLID- SCREW CLAMP TERMINALS 2 0.75-2.5 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.75-1.5 MMAFLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 0.75-1.5 MMAFLEXIBLE WITH CABLE END
Type
SHUNT TRIP
Voltage
0.75...0.2 UN

Manufacturer Information

Brand
Schneider Electric
Sub Brand
GVAS,TESYS

General Product Info

12-Digit UPC
389110343697
Color
Gray
GTiN
03389110343694
Product UPC
78590134369
Weight
0.105 kg

Dimensions

Depth
66 mm
Height
89 mm
Warranty Length
18 mth
Width
18 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • GV2ME08
  • GV2ME10
  • GV2ME14
  • GV2ME07
  • GV2ME06
  • GV2ME16
  • GV2ME20
  • GV2ME05
  • GV2ME22
  • GV2ME21
  • GV2ME32
  • GV3P40
  • GV2ME04
  • GV2P08
  • GV2P10
  • GV3P50
  • GV2P14
  • GV3P65
  • GV2P07
  • GV2P16
  • GV2P06
  • GV2ME03
  • GV2P20
  • GV2P32
  • GV2P05
  • GV2P22
  • GV3P80
  • GV2ME02
  • GV2L14
  • GV2P21
  • GV2P04
  • GV3P32
  • GV2L08
  • GV2LE14
  • GV2LE10
  • GV2L16
  • GV2L10
  • GV2L22
  • GV3P73
  • GV2RT10
  • GV3P25
  • GV2L20
  • GV2RT07
  • GV2RT08
  • GV2ME01
  • GV2LE16
  • GV2LE22
  • GV2LE08
  • GV2LE20
  • GV2L07
  • GV3L40
  • GV2RT06
  • GV2L32
  • GV3L50
  • GV2RT14
  • GV3L65
  • GV2P03
  • GV2LE07
  • GV2RT16
  • GV3P18
  • GV2RT20
  • GV3P13
  • GV2RT05
  • GV2P02
  • GV2LE32
  • GV2RT03
  • GV2P01
  • GV2L06
  • GV3L32
  • GV2L05
  • GV2RT04
  • GV2LE06
  • GV2RT21
  • GV2LE05
  • GV2L03
  • GV2L04
  • GV3L25
  • GV3L73
  • GV2LE04
  • GV2LE03
