LITH LE S 1 R Signature die-cast al

Manufacturer: Lithonia Lighting | Catalog # LES1R | Echo Electric Part # 161225
$266.74/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet Safety Data Sheet

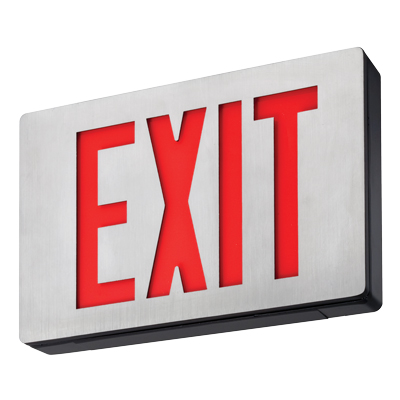

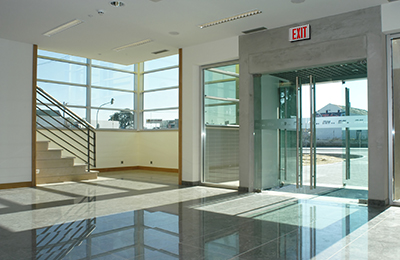

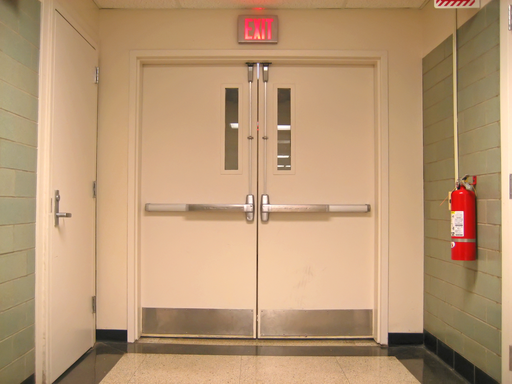

The Signature Die-Cast Aluminum Exit from Lithonia Lighting is ideal for corridors, lobbies, reception areas and office spaces. The LED light source provides up to 10 years of light and has low energy consumption making it a smart exit lighting alternative. Ultra-slim in design, the exit sign is made of die-cast aluminum with a finish that repels fingerprints and other surface contaminants.

Technical Information

Applications
Automotive & Parking,Education,Government,Healthcare,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Residential,Retail,Sports And Recreation,Transportation,Warehouses
Lamp Type
LED
Material
Aluminum
Mounting Type
Surface
Number of Lamps
1
Power Source
Hardwired
Type
Emergency Exit Sign
Voltage
120 Volt
Wattage
2 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
753573759287
Color
Silver
Environment
Indoor,Outdoor
Environmental Conditions
Indoor,Outdoor
Finish
Brushed
Fixture Type
Emergency Exit Unit (aka Combo), Exit Sign
GTiN
00753573759287
Housing Color
Silver
Letter Color
Red
Product UPC
75357375928
Shape
Square
Weight
5 lb

Dimensions

Height
4-1/2 Inch
Length
12-1/2 Inch
Warranty Length
5 yr
Width
8.5 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Applications
  • Automotive & Parking
  • Education
  • Government
  • Healthcare
  • Hospitality
  • House of Worship
  • Manufacturing
  • Offices & Banks
  • Residential
  • Retail
  • Sports and Recreation
  • Transportation
  • Warehouses
Standards
  • NFPA 101
  • NFPA 70
  • ULBAA
  • CA Title 20
Features
  • The Signature Exit is durable, yet attractive with a die-cast aluminum housing featuring precise edges, clean lines and no exposed hardware
  • Low energy consumption red exit consumes std .81W, 1.3W (120V), green exit consumes std is 1W, 1.5W (120V) with universal input voltage capabilities (120V through 277V, 50 or 60 HZ)
  • Two-state constant-current charger maximizes battery life and automatically recharges after battery discharge, test switch provided for manual testing, self-diagnostic testing for five minutes every 30 days, 30 minutes at 180-day interval, and 90 minutes
  • UL damp location listed 50°F - 104°F (10°C - 40°C), meets UL 924, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards, North Carolina Department of Insurance
  • Universal mounting (top, end or back) with double face available with top or end mounting only

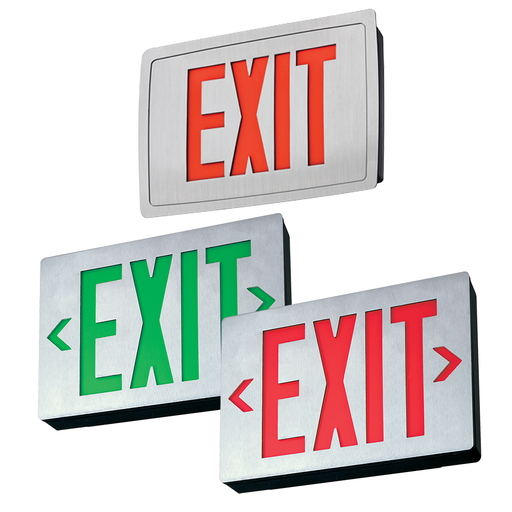

  • The typical life of the exit LED lamp is 10 years, based on continuous operation, unique LED lamp platform accommodates both single-face and double-face exits
  • Fully overlapping light seal prevents light leaks, universal directional chevron knockouts are completely concealed and easily removed with hinged faceplate and spring latches for easy lamp compartment access, no exposed hardware
  • Battery sealed, maintenance-free nickel-cadmium battery delivers 90 minutes capacity to lamp
  • 5-year limited warranty
  • n/a
