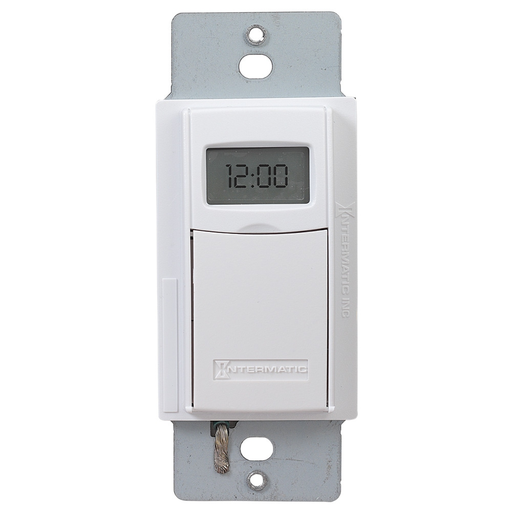

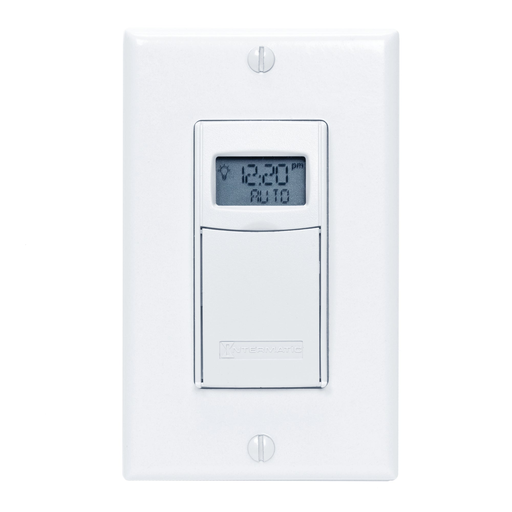

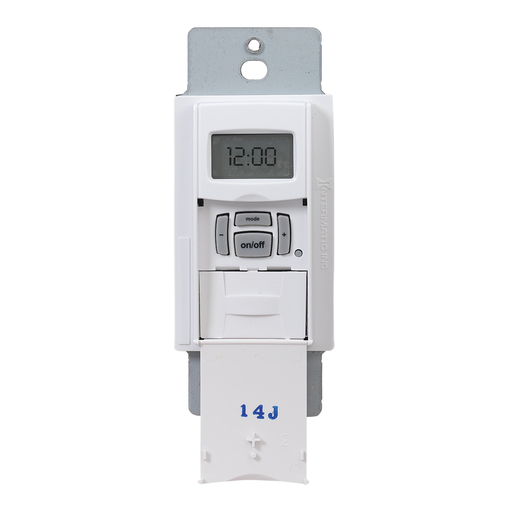

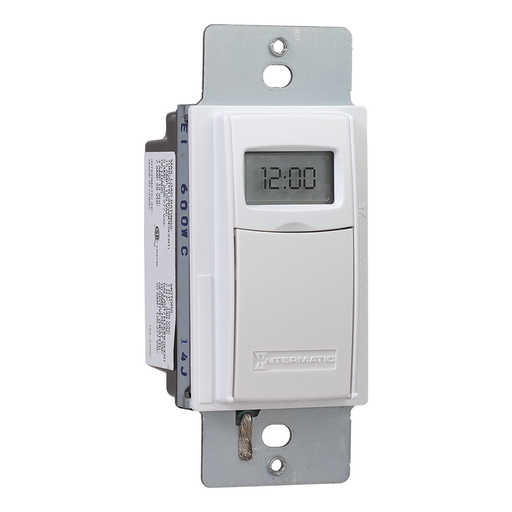

Product image for Intermatic EI600WC 7-Day 120-277V 20A 1-Pole 3-Way Digital In-Wall Timer Switch - White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Intermatic EI600WC 7-Day 120-277V 20A 1-Pole 3-Way Digital In-Wall Timer Switch - White

Manufacturer: Intermatic, Inc | Catalog # EI600WC | Echo Electric Part # 161461
$81.90/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
7 available

For Delivery

Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Highly versatile Heavy-Duty Timers are ideal for any application that requires a simple or complex ON/OFF schedule, regardless of load. No neutral connection is required.

Technical Information

Action
SPST
Amperage
15/20 Amp
Applications
Incandescent Lighting, Fluorescent Lighting, HVACR, LED Lighting
Contact Configuration
SPST - 1 NO
Contact Rating
15 A at 120 VAC (Tungsten Incandescent), 6 A at 208 - 277 VAC (Tungsten Incandescent), 20 A at 120 - 277 VAC (Resistive Heater), 16 A at 120 - 277 VAC (Ballast Magnetic), 4 A at 12 VDC (DC Loads), 2 A at 28 VDC (DC Loads), 5540 W
Input Voltage
12-28 V
Material
Plastic
Max Operating Temperature
104 degrees F
Min Operating Temperature
32 degrees F
Mounting Type
Wall Mount
Number of Poles
1 Pole
Operating Temperature
122 degrees F
Size
2.75 HEIGHT X 1.75 WIDTH X 1.36 DEPTH IN, 69.85 HEIGHT X 44.45 WIDTH X 34.54 DEPTH MM
Standard
CCSAus Certified,California TITLE 24 Compliant,HVACR,Title CA 20 Listed
Switch Type
SPST
Temperature Rating
32 - 122 degrees F
Type
Astronomic, 1-Pole
Voltage
127 Volt
Wattage
5540 Watt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275101418
Color
White
GTiN
00078275101418
Product UPC
07827510141
Weight
0.472 lb

Dimensions

Depth
1.813 Inch
Height
4-1/8 Inch
Warranty Length
5 yr
Width
1.75 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Thailand
Features
  • Versatile 7-day programmable schedules with up to 40 ON/OFF events
  • Astronomic clock feature determines dawn and dusk times
  • Automatic Daylight Saving Time (DST) adjustment
  • Random mode varies ON/OFF schedule to provide a \"lived-in\" appearance
  • Single or 3-way switch compatible installation
  • Incandescent/fluorescent/CFL/LED compatible
  • Isolated switch allows timer to be used with any load type, including AC and DC loads
  • Replaceable CR2 lithium battery provides up to three years of operation
  • No neutral wire connection enables easy retrofitting and quicker installation
  • Decorator switch plate not included
