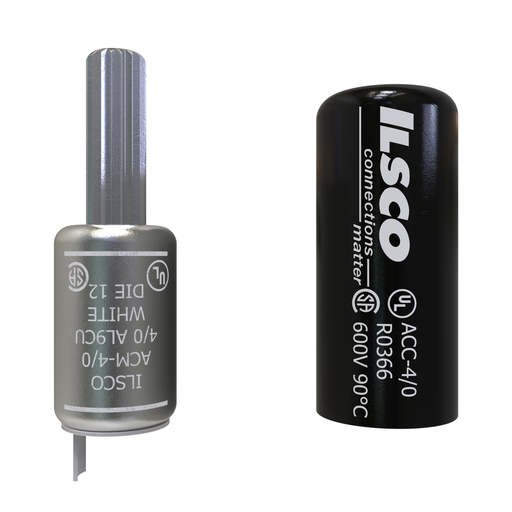

Ilsco ACM-4/0 Aluminum Compression Pigtail Adaptor, Conductor Size 4/0, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # ACM-4/0 | Echo Electric Part # 161957
$23.49/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
ILSCO Aluminum Pigtail Adaptor, Compression connection, Dual Rated, Aluminum material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper/Aluminum Primary Conductor 4/0 Str, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code White, primary color Silver, die index 12,

Technical Information

Applications
For Terminating Connector
Barrel Length
1.37 in
Barrel Type
Standard
Conductor Material
Aluminum,Copper
Conductor Size
4/0 AWG
Conductor Type
Stranded
Connection Type
Compression
Contact Material
Aluminum
Material
Aluminum
Number of Conductors
1
Size
L:3.484;W:1.03;H:1.03 IN
Temperature Rating
90 degrees C
Type
Long, Round
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669009149
Color
White
GTiN
00783669009149
Product UPC
78366900914
Weight
0.088 lb

Dimensions

Height
1.03 Inch
Inside Diameter
0.553 in
Length
3.484 Inch
Outside Diameter
0.85 in
Width
1.03 in
