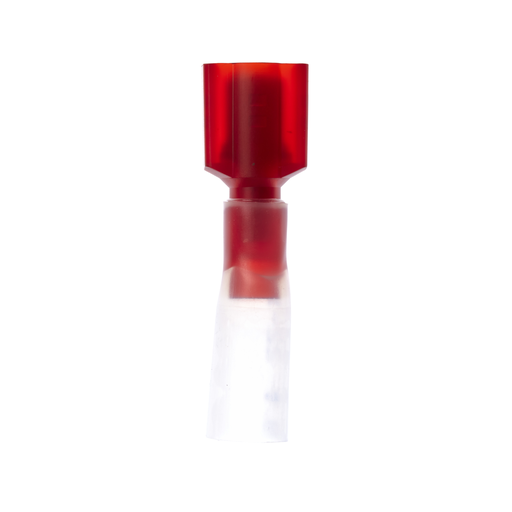

Product image for 3M MNHU18-250DMIX 25/Bottle Heatshrink Nylon Insulated Male Disconnect
Image thumbnail 0
Image thumbnail 1
Email

3M MNHU18-250DMIX 25/Bottle Heatshrink Nylon Insulated Male Disconnect

Manufacturer: 3M | Catalog # 7000133397 | Echo Electric Part # 161994
$196.14/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Male Disconnect is an insulated disconnect which attaches to its mating part by slipping the tongue of the male part over the female tab. This disconnect offers superior holding force while allowing for quick and easy disconnect. Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. 3M™ Scotchlok™ Male Disconnects are UL Recognized and CSA certified.

Technical Information

Barrel Type
Butted
Conductor Size
22-18 AWG
Insulation Material
Heat Shrink
Material
Plastic
Max Operating Temperature
105.0 degrees C
Tab Size
1/4 in
Terminal Size
22 - 18 AWG
Terminal Style
Fully Insulated
Terminal Type
Disconnect
Type
Disconnect

Manufacturer Information

Brand
Scotchlok
Sub Brand
Scotchlok

General Product Info

12-Digit UPC
051128589175
Color
Red
GTiN
00051128589175
Product UPC
05112858917

Dimensions

Diameter
0.3 Inch
Length
1.2 Inch
Overall Length
1.2 in
Thickness
0.032 in
Width
0.44 in

Certifications and Compliance

Country of Origin
USA
Features
  • This male disconnect terminal offers excellent holding force
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Mates with 0.25-in wide female tab
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
