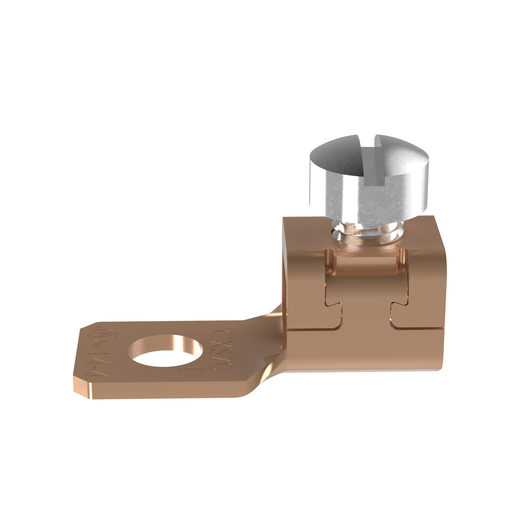

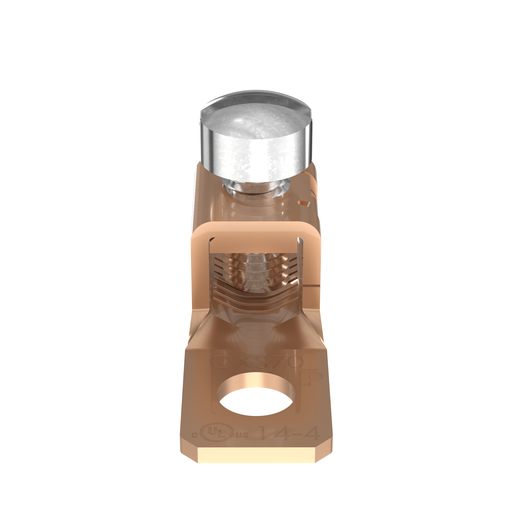

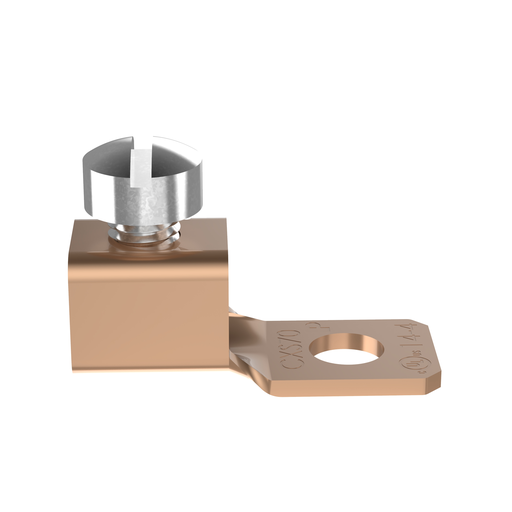

Product image for Panduit CXS70-14-C 1-Hole #14 - #4 AWG 1/4 Inch Copper Single Barrel Straight Stud Hole
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Panduit CXS70-14-C 1-Hole #14 - #4 AWG 1/4 Inch Copper Single Barrel Straight Stud Hole

Manufacturer: Panduit Corp | Catalog # CXS70-14-C | Echo Electric Part # 162002
$454.50/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page
The CXS70-14-C Mechanical Connector Lug one-hole copper, single barrel, is made from high strength electrolytic copper to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel slotted screw provides a durable electrical contract between conductor and connector. The internal pressure bar and V-bottom collar provide uniform clamping force to assure positive contact.

Technical Information

Barrel Length
0.53 in
Bolt Size
1/4 in
Conductor Size
14-4 AWG
Conductor Type
Copper
Material
Copper
Number of Conductors
1
Temperature Rating
90 degrees C
Tongue Thickness
0.06 in
Tongue Type
Straight Fixed Tongue
Tongue Width
0.5 in
Type
Single Barrel

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983837304
Finish
Outer Surface to be SPI A-2, All other surfaces to be common polish
GTiN
00074983837304
Product UPC
07498383730

Dimensions

Height
1/2 Inch
Overall Length
1.28 in
Width
0.5 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: cULus listed up to 600V and temperature rated to 90 degrees C
