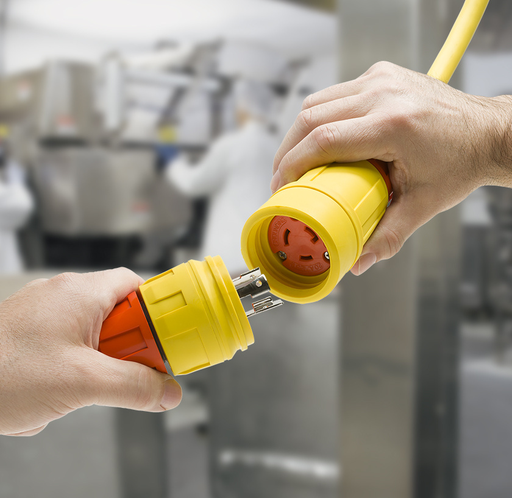

Product image for Pass & Seymour 25W47AM 15A 125V Locking Anti Microbial IP67 L5-15R Connector, Orange/Yellow
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Pass & Seymour 25W47AM 15A 125V Locking Anti Microbial IP67 L5-15R Connector, Orange/Yellow

Manufacturer: Pass & Seymour / Legrand | Catalog # 25W47AM | Echo Electric Part # 162047
$80.97/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet
SteriGuard Anti-Microbial Wiring Devices provide excellent protection against the growth of microbes on all surfaces. Independent testing proves the ability of these devices to inhibit the growth of Escherichia coli, Gram (-) and Staphylococcus aureus, Gram (+) providing long lasting benefits to manufacturers beyond conventional cleaning methods. Rated watertight for 1,500 psi high-pressure''

Technical Information

Amperage
15 Amp
Applications
High-pressure washdowns. Particle build-up. Condensation. Corrosive substances. Food and beverage processing plants can be harsh, challenging environments. Fortunately, we have a full menu of electrical devices that keep things running smoothly while protecting people and equipment. IEC PIN & SLEEVE DEVICES Watertight Plugs & Connectors Thermoplastic elastomer body resists water, oils, lubricants and soaps while maintaining NEMA 4, 4X, 6, 6P, and IP65, 66, 67 ratings Ideal for washdown areas rated watertight for 1,500 PSI high-pressure hose down Nickel-plated blades and contacts for long-lasting, superior corrosion resistance Watertight compression cord grips and a multipoint sealing system between the plug and connector ensures protection from water and contaminants P
Conductor Size
18-12 AWG
Cord Type
Type S, SO, ST, SJ, SJO, SJT, 18/3 to 12/3, .300" min to .625" max dia.
Material
Rubber
NEMA
L5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Temperature Rating
-40 degrees C to 60 degrees C
Type
Anti-Microbial
Voltage
125 Volt
Wire Size
12 AWG
Wire Type
S, SO, ST, SJ, SJO, SJT

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007057065
Color
Yellow
Environmental Conditions
Moisture Resistance NEMA 4, 4X, 12, 6, 6P/IP65, 66, 67 (Plug & Connector only) Flammability UL94V0 (boxes & wiring device interiors) Operating Temperature -40C (without impact) to +60C continuous UV resistance All exposed material s are UV stabilized
GTiN
00785007057065
Product UPC
78500705706
UNSPSC
39121403

Dimensions

Depth
4.03 Inch
Diameter
1.81 Inch
Height
1.85 Inch
Length
4.01 Inch
Width
1.85 in

Certifications and Compliance

Buy American Compliant
Y
Certifications
CSA,UL
Country of Origin
USA
Features
  • UL and CSA Listed
  • NSF (National Sanitation Foundation) Certified
  • Patent Pending
  • Anti-microbial Additives Embedded in polymer and inhibits Growth of Bacteria, Molds, Mildews and Fungi
  • Anti-microbial Additive Resistant to Scuffing and Cleaning
  • Escherichia (E.Coli): - Log reduction greater than 4.8, reduced surface bacteria by greater than 99.99%
  • Staphylococcus (Staph), MRSA: - Log Reduction greater than 4.3, reduces surface bacteria by greater than 99.97%
  • Salmonella : Log Reduction Greater Than 3.6, reduces surface bacteria by Greater Than 99.97%
  • RoHS Compliant (Non-Halogenated)
  • Independently tested and Certified to JIS Z2801 standards
  • Resistant to High Pressure Hose-down applications
  • Tongue & Groove Environmental Sealing
  • Keyed Body and Cover for Alignment
  • NEMA Type 4, 4x, 6, 6P and IP67 Protection
  • Steriguard: Anti-microbial Wiring Devices are ideal for a wide range of applications including food and beverage preparation, procession, & packaging: agriculture, pharmaceutical, and health care.
Certifications
  • UL Listed
  • CSA Listed
