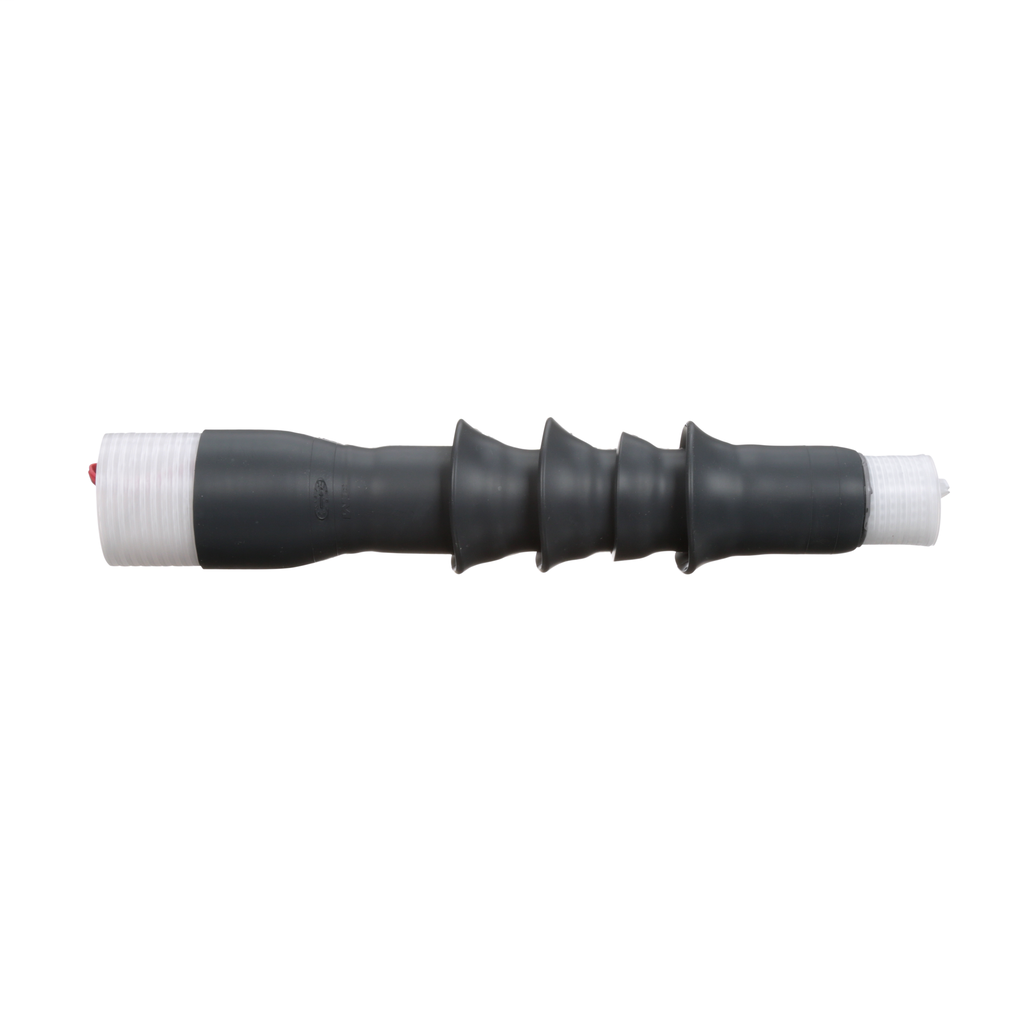

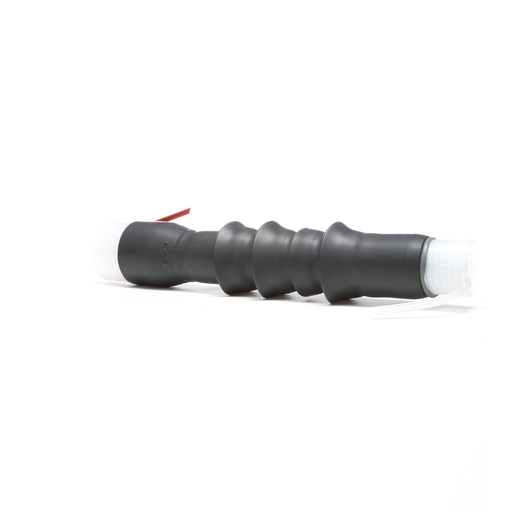

Product image for 3M 7652-S-4 Cold Shrink 4 Skirt Termination
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4

Email

3M 7652-S-4 Cold Shrink 4 Skirt Termination

Manufacturer: 3M | Catalog # 7000140713 | Echo Electric Part # 162076

$22,107.28/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
3M™ Cold Shrink QT-III Silicone Rubber Terminations are a one-piece, non-skirted silicone rubber termination that comes with factory-applied, pre-positioned Hi-K stress control layers underneath the insulator. Its short installed length is excellent for installations in limited spaces, such as those with motors, starters, switchgear, variable speed drives, transformers and similar connections which often reduce the need to add auxiliary boxes when enclosure space is limited.

Technical Information

Applications
For Terminating Solid Dielectric Power Cable with Tape Shield, Wire-Over-Tape Shield and Longitudinally Corrugated Shield, Solid Dielectric Insulations, Such as Polyethylene, XLPE and EPR, Free-Hanging or Bracket-Mounting Arrangements, Compact Design Provides for Easier Installation in Restricted Spaces, Switchgear, Transformer, Motor Lead, Bus and Similar Connections, Outdoor Use
Cable Type
Concentric Neutral (CN); Jacketed Concentric Neutral (JCN)
Conductor Size
1 AWG-400 kcmil
Indoor Outdoor
Outdoor Skirted
Material
Rubber
Type
QT-III
Voltage
15 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007421788
GTiN
00054007421788
Product Series
7650-S
Product UPC
05400742178
Used With
0.64 - 1.08 in Cable, QL2-A-2-250 Lug

Certifications and Compliance

Country of Origin
USA
Features
  • Provides a void-free seal to jacketed concentric neutral and concentric neutral power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor applications
  • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
