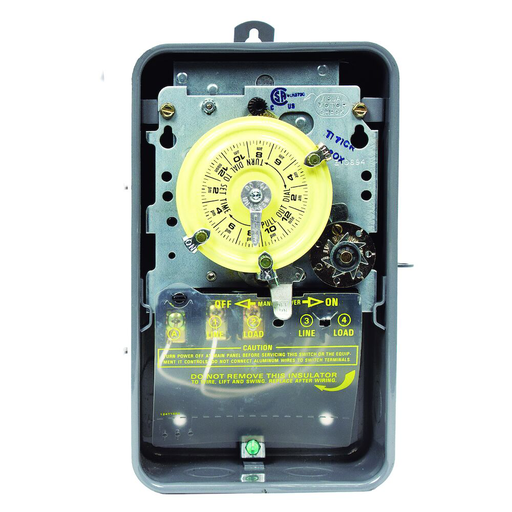

Product image for Intermatic T171CR NEMA 3R Steel Case 125 VAC 60 Hz 40 Amp SPST Electromechanical Time Switch
Image thumbnail 0
Image thumbnail 1
Email

Intermatic T171CR NEMA 3R Steel Case 125 VAC 60 Hz 40 Amp SPST Electromechanical Time Switch

Manufacturer: Intermatic, Inc | Catalog # T171CR | Echo Electric Part # 163610
$626.06/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series Time Switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.

Technical Information

Action
SPST
Amperage
40 Amp
Applications
Indoor/outdoor lighting, signs, filters, electric fences, fans, conveyors
Contact Configuration
1 NO
Contact Rating
120 VAC
Enclosure
NEMA 3R Steel
Enclosure Type
Outdoor type 3R metal
Frequency
60 Hz
Input Voltage
120 V
Material
Metal
Max Operating Temperature
130 degrees C
Max Wire Size
8 AWG
Min Operating Temperature
-40 degrees C
Min Wire Size
14 AWG
Mounting Configuration
Wall mount
Mounting Type
Wall Mount
Number of Circuits
1
Number of Poles
1 Pole
Operating Temperature
-40 To 130 degrees F
Power Consumption
3 W
Power Source
Electricity
Temperature Rating
54.0 degrees C
Type
Medical/Dental/Veterinary - Timers
Voltage
125 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275171039
Environmental Conditions
Outdoor
GTiN
00078275171039
Product Category
Medical/Dental/Veterinary - Timers
Product Type
Medical/Dental/Veterinary - Timers
Product UPC
07827517103
Used With
Lighting, signs

Dimensions

Depth
3-5/8 Inch
Height
10-1/8 Inch
Warranty Length
1 yr
Width
6.5 in

Certifications and Compliance

CA Prop65 Warning
Lead
Country of Origin
France
Features
  • Controls loads up to 40 A per pole
  • Direct 24-hour control of most loads
  • Up to 10 ON/OFF operations each day
  • Minimum ON/OFF times of one hour
  • Manual override
  • One ON and one OFF tripper and three day-skipper screws included
Prop 65
  • Lead
Compliance
  • CSA Certification File Number -> C22.2-177; LR3730
