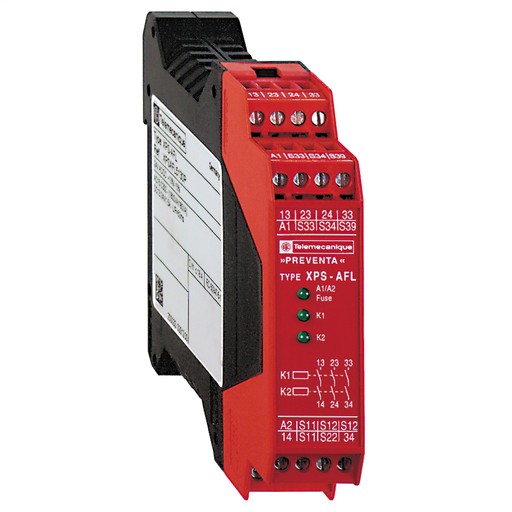

Product image for SQD XPSAFL5130P 2.5A 300V SFTY RLY
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

SQD XPSAFL5130P 2.5A 300V SFTY RLY

Manufacturer: Square-D / Schneider | Catalog # XPSAFL5130P | Echo Electric Part # 164239
$304.06/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
This XPSAFL safety module monitors emergency shutdown pushbuttons, limit switches and light curtains. It meets the requirements of Performance Level PL e/Category 4 conforming to standard EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 61508 and EN/IEC 62061. It can be used for monitoring emergency stop circuits conforming to standards EN/ISO 13850 and EN/IEC 60204-1 and electrical monitoring of switches activated by protection devices conforming to standard EN/ISO 14119. And for monitoring of type 4 light curtains conforming to EN 61496-1 that have solid-state safety outputs, with a performance lLevel PL e/Category 4 in accordance with EN/ISO 13849-1. 24V AC supply allows direct supply via an auxiliary transformer, like ABT7 or ABL6, allowing saving at installation time. It is compatible with emergency push buttons, limit switches and safety light curtains, the 3 most common safety sensors in the industry. It has removable terminals for easier and better control wires tightening, thus improving installation reliability.

Technical Information

Applications
EMERGENCY STOP WITH 2 NC CONTACTS MONITORING 2-CHANNEL WIRING-MULTIPLE EMERGENCY STOP MONITORING 2-CHANNEL WIRING-MONITORING OF A MOVABLE GUARD-EMERGENCY STOP MONITORING 1-CHANNEL WIRING-MONITORING OF ELECTRO-SENSITIVE PROTECTION EQUIPMENT (ESPE),FOR EMERGENCY STOP, SWITCH AND SAFETY LIGHT CURTAIN MONITORING
Contact Configuration
3 N.O. (INSTANTANEOUS)
Contact Rating
1.5 A 24 V DC-13)50 MS RELAY OUTPUT,180 VA HOLDING AC-15 C300 RELAY OUTPUT-1800 VA INRUSH AC-15 C300 RELAY OUTPUT
Current
24 V
Output
RELAY INSTANTANEOUS OPENING, 3 NO, VOLT-FREE
Power Supply
24 V AC - 15...10 -24 V DC - 15...10
Standard
EN 1088/ISO 14119,EN 60204-1,EN/IEC 60947-5-1,EN/IEC 61496-1 (type 4),EN/ISO 13850
TC Connection
CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.2...1 X 2.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.2...1 X 2.5 MMA SOLID WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.25...1 X 2.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.2...2 X 1 MMA SOLID WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.2...2 X 1.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.25...2 X 1 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.5...2 X 1.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL
Type
PREVENTA SAFETY MODULE

Manufacturer Information

Brand
Preventa
Sub Brand
PREVENTA

General Product Info

12-Digit UPC
785901295266
GTiN
03389110124491
Product UPC
78590129526
Weight
0.55 lb

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA,TV,UL
Country of Origin
Indonesia
