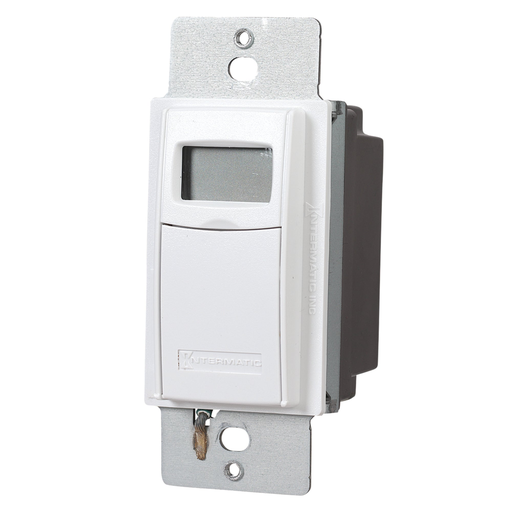

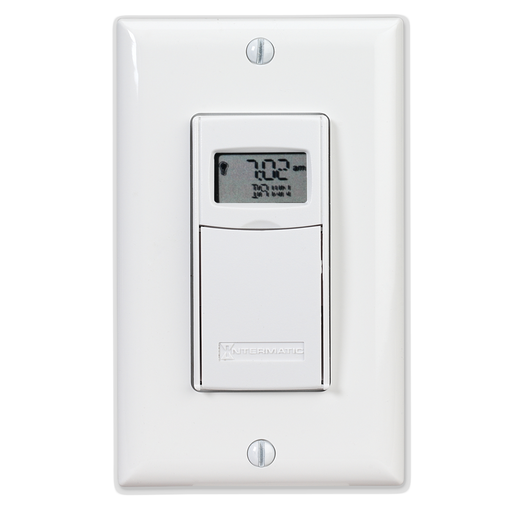

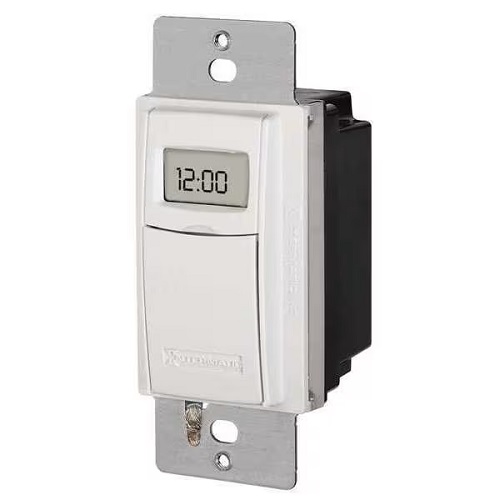

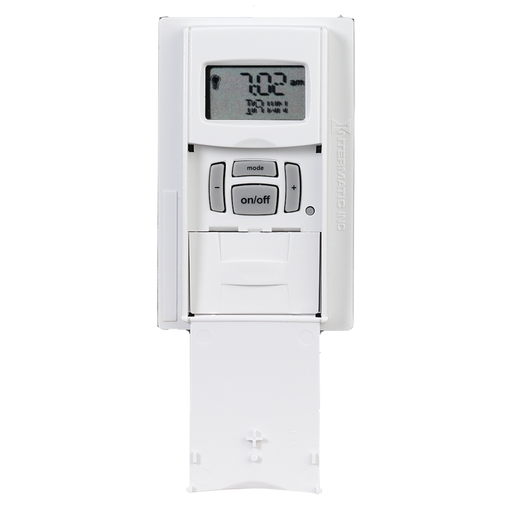

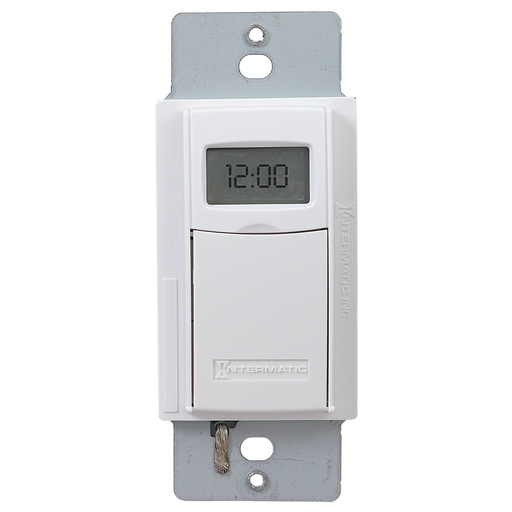

Product image for Intermatic ST01 15A, 120V Programmable In-Wall Timer
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Intermatic ST01 15A, 120V Programmable In-Wall Timer

Manufacturer: Intermatic, Inc | Catalog # ST01 | Echo Electric Part # 164249
$62.25/ea
ea
Log in or register to view your price, purchase history, and more!
7 available

For Pick Up

at Springfield, IL Opens Monday 7:00am CT
35 available

For Delivery

Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Highly versatile Heavy-Duty Timers are ideal for any application that requires a simple or complex ON/OFF schedule, regardless of load. No neutral connection is required.

Technical Information

Action
SP/3 Way
Amperage
15 Amp
Applications
HVACR
Connection Type
Wire Lead
Contact Configuration
SP/3 Way
Contact Rating
8.3 A at 120 VAC (Tungsten-Incandescent), 15 A at 120 VAC (Resistive-Heater), 8 A at 120 VAC (Ballast-Magnetic), 2000 W
Input Voltage
12-28 V
Material
Thermoplastic
Max Operating Temperature
104 degrees F
Min Operating Temperature
32 degrees F
Mounting Type
Wall Mount
Number of Poles
1 Pole
Operating Temperature
122 degrees F
Standard
CCSAus Certified,HVACR,Title CA 20 Listed
TC Connection
Wire Lead
Temperature Rating
32 - 122 degrees F
Type
Heavy Duty, 1-Pole

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275101432
Color
White
GTiN
00078275127562
Product UPC
07827512756
Weight
0.352 lb

Dimensions

Depth
1.813 Inch
Height
4-1/8 Inch
Warranty Length
1 yr
Width
1.75 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Thailand
Features
  • Versatile 7-day programmable schedules with up to 40 ON/OFF events
  • Astronomic clock feature determines dawn and dusk times
  • Automatic Daylight Saving Time (DST) adjustment
  • Random mode varies ON/OFF schedule to provide a \"lived-in\" appearance
  • Single or 3-way switch compatible installation
  • Incandescent/fluorescent/CFL/LED compatible
  • Isolated switch allows timer to be used with any load type, including AC and DC loads
  • Replaceable CR2 lithium battery provides up to three years of operation
  • No neutral wire connection enables easy retrofitting and quicker installation
  • Decorator switch plate not included
