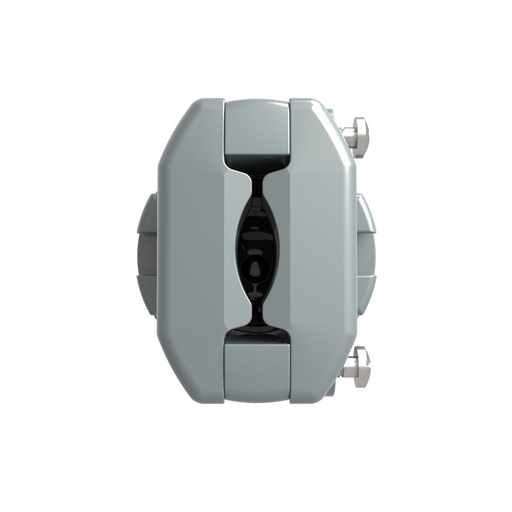

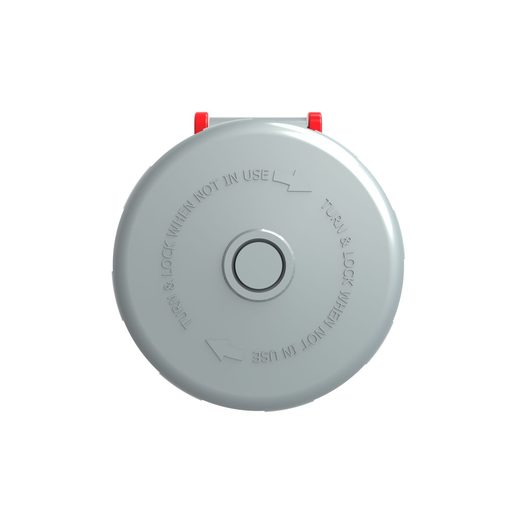

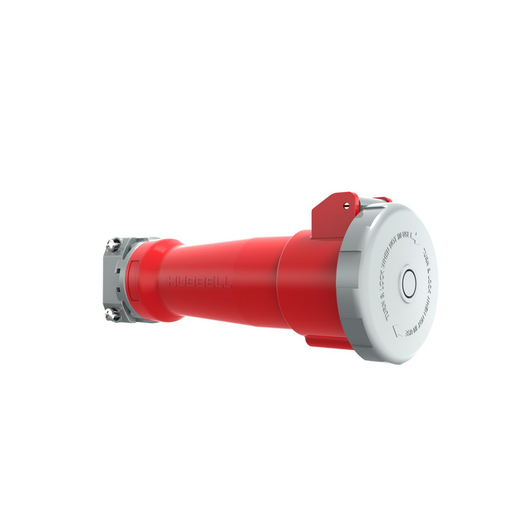

Product image for Hubbell HBL5100C7W PS, IEC, C, 4P5W, 100A 277/480V, IP67
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell HBL5100C7W PS, IEC, C, 4P5W, 100A 277/480V, IP67

Manufacturer: Hubbell Wiring Device | Catalog # HBL5100C7W | Echo Electric Part # 165336
$1,003.19/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 100A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Red, Watertight

Technical Information

Amperage
100 Amp
Applications
High Ampacity Connections
Conductor Size
3-1/0 AWG
Current
100 Amp
Grounding
Grounding
Material
Nylon
Mounting Type
Cord
Number of Conductors
5
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,File E146033,File LR280C,IEC 60309-1 IEC 60309-2,UL
Style
Standard Service
TC Connection
Pressure Screw Terminal
Temperature Rating
-40 to 75 degrees C/-25 to 75 degrees C
Type
Straight
Voltage
277/480 Volt
Wire Count
5

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585405056
Color
Red
Environmental Conditions
Watertight
GTiN
00783585405056
Product UPC
78358540505
Weight
4.95 lb

Dimensions

Height
5-1/4 Inch
Length
14 Inch
Width
6.1 in

Certifications and Compliance

Certifications
CSA Certified File LR280C For Plugs,CSA Standard C22.2 No. 182.1,Connectors And Inlets,E146033 Plugs And Connectors,File E146032 Receptacles And Inlets,IEC,LR285C For Receptacles,UL Classified To IEC60309-1,UL Listed,UL Listed,UL Standard 498 CSA Certified To CSA Spec. C22.2 No. 182.2 UL Classified To IEC 309-1 And IEC 309-2.,UL Standard UL1682 & UL1686C2
Country of Origin
USA
Features
  • Self-closing gasketed cover
  • Color coded housings for easy identification
  • Super tough insulated non-metallic housing
  • Watertight
