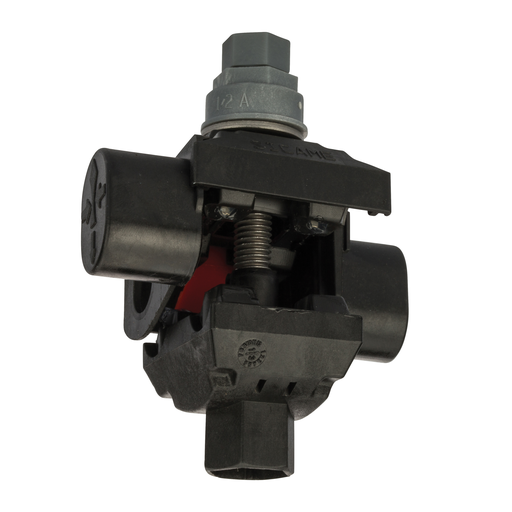

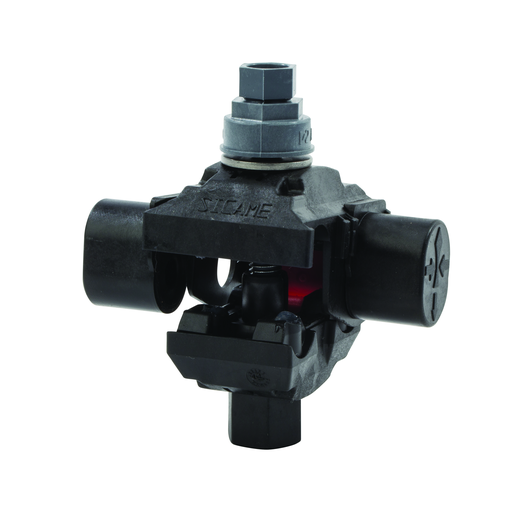

Product image for NSI IPCS1002 8 to 1/0 AWG Main 10 to 2 AWG Tap Black Thermal Plastic Insulation Piercing Connector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

NSI IPCS1002 8 to 1/0 AWG Main 10 to 2 AWG Tap Black Thermal Plastic Insulation Piercing Connector

Manufacturer: NSi | Catalog # IPCS1002 | Echo Electric Part # 165386
$43.75/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Insulation Piercing Connector 1/0 - 8 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.

Technical Information

Amperage
150-190 Amp
Applications
Splice, Tap Power Connectors
Conductor Size
8-1/0 AWG
Material
Plastic
Max Temperature
90 degrees C
Mounting Type
Clamp
Size
L=2.20 - W=1.80 - H=3.10
Standard
UL486B Listed
Tap Size
2-10 AWG
Temperature Rating
90 degrees C
Type
Insulation Piercing Connectors
Voltage
600 Volt
Wire Size
8-0 AWG

Manufacturer Information

Brand
NSI Industries
Sub Brand
Easy-Tap

General Product Info

12-Digit UPC
662381082626
Color
Black
Environmental Conditions
90 degrees C
Finish
Thermal Plastic
GTiN
00662381082626
Product UPC
66238108262

Dimensions

Height
3.1 Inch
Length
2.2 Inch
Warranty Length
1 yr
Width
1.8 in

Certifications and Compliance

Country of Origin
France
Certifications and Standards
  • ANSI
  • Not UL
Features
  • Safe to use, versatile and reliable
  • No need to strip wire and totally insulated
  • No tape or cover needed
  • No contact at any point with a live part
  • Exclusive \"turbo spacer\" keeps tap side open while main conductor is being tightened.
