Thomas & Betts D8-14-SK Non-Insulated Large Ring Terminal - #8, 1/4"bolt

Manufacturer: Thomas & Betts Co | Catalog # D814SK | Echo Electric Part # 165770
$423.52/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
108 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet

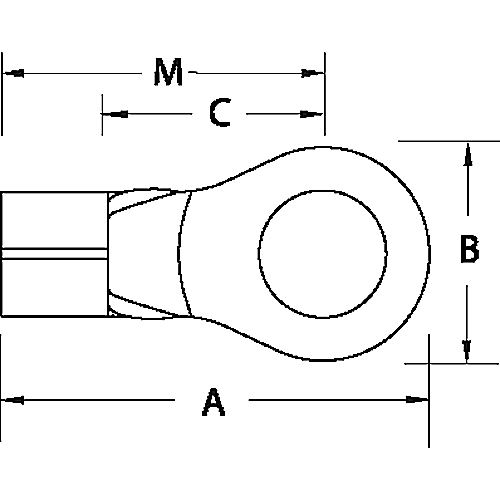

Non-Insulated Large Brazed Seam Ring Terminal, Length 1.13 Inches, Width .48 Inches, Bolt Hole 1/4 Inch, Wire Range #8 AWG, Copper, Tin Plated

Technical Information

Conductor Size
8 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Non-Insulated - Brazed Seam
Material
Copper
Stud Size
1/4 in
Temperature Rating
150 degrees C
Terminal Type
D
Type
Short Sleeve
Voltage
600 Volt
Wire Size
8 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803548
Color
Metallic
Finish
Tin Plated
GTiN
05414363150145
Product UPC
78621080354
Used With
Round Conductors

Dimensions

Thickness
.06 in
Features
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
Notes
  • Not available on Mylar Tape.
Certifications
  • UL
  • CSA
