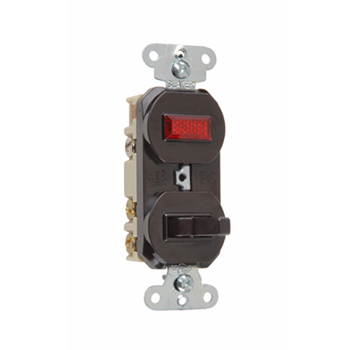

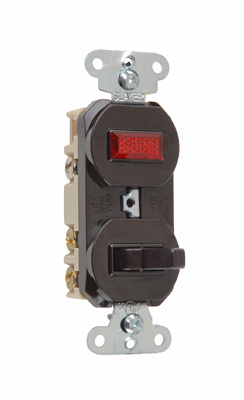

Product image for Pass & Seymour 695 1.32 x 0.94 x 3.28 Inch 120/125 VAC 15 Amp 3-Way Brown Non-Grounding Combination Switch and Pilot Light
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour 695 1.32 x 0.94 x 3.28 Inch 120/125 VAC 15 Amp 3-Way Brown Non-Grounding Combination Switch and Pilot Light

Manufacturer: Pass & Seymour / Legrand | Catalog # 695 | Echo Electric Part # 166019
$3,218.46/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Three-way, Single Pilot Light, Combination Switch, 15 amps, 120/125 volts, Brown.

Technical Information

Action
3W,Pilot Light
Actuator
Toggle
Amperage
15 Amp
Applications
Residential/Commercial
Connection Type
Non-grounding,Side Wire
Contact Configuration
N-O
Contact Rating
120 V
Number of Poles
3 Pole
Operating Cycles
30000.0
Operating Temperature
Maximum continuous +60degrees C, minimum -30degrees C
Size
1.32 L x 0.94 W x 4.06 H In
TC Connection
Side wire, non-grounding
Type
Combination, Pilot Light
Voltage
120 Volt
Wattage
0.04 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007695007
Color
Brown
GTiN
00785007695007
Product UPC
78500769500
UNSPSC
39121406

Dimensions

Depth
0.94 Inch
Height
3.28 Inch
Width
1.32 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Easily accessible break-off separate or common feed.
  • Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.
  • Side wire #12 and #14 AWG.
  • Two devices fit into the space of one.
  • Grounding combination devices meet NEC Requirements.
  • Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.
  • This switch is compatible with incandescent loads only and is not recommended for use with LED or CFL lamps.
  • For covering patents, see www.legrand.us/patents.
Eco-Benefit Information
  • RoHS Compliant
