APP EFSR-2023 2W-3P RCPT

Manufacturer: Appleton Electric | Catalog # EFSR-2023 | Echo Electric Part # 166108
$904.40/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page

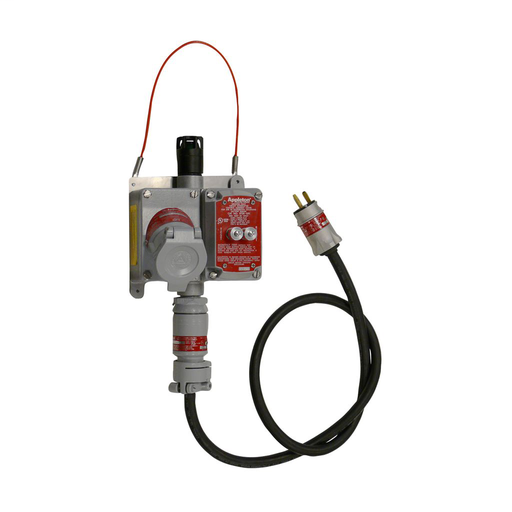

U-Line™ Factory Sealed 20 Amp Plugs and Receptacles are used with stationary or portable electrically operated devices in hazardous locations. The ECP Interchanger plug is designed with built-in switch contacts which activate when the plug is twisted into the receptacle. This design allows the ECP plug to fit into standard NEMA 5-20R and 6-20R receptacles, but does not allow standard plugs to be used with the receptacle, ensuring that only safe connections can be made in a hazardous location.

Technical Information

Amperage
20 Amp
Applications
For ECP Mating Plugs
Horsepower
1 hp
Material
Aluminum
Number of Poles
3 Pole
Number of Wires
2 Wire
Type
1-Gang Replacement Receptacle
Voltage
125 Volt

Manufacturer Information

Brand
Appleton
Sub Brand
U-Line

General Product Info

12-Digit UPC
781381288057
GTiN
00781381288057
Product UPC
78138128805
Features
  • Energized receptacle contacts deeply recessed to reduce danger of accidental touching
  • Unique blade-type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact.
  • Insulators provide superior dielectric and mechanical strength and lowest arc tracking
  • ECP plug fits any standard non-explosionproof receptacle (NEMA 5-20R, or 6-20R) as well as U-Line™ explosionproof receptacles
  • Choice of malleable iron receptacle and mounting box or aluminum receptacle and mounting box

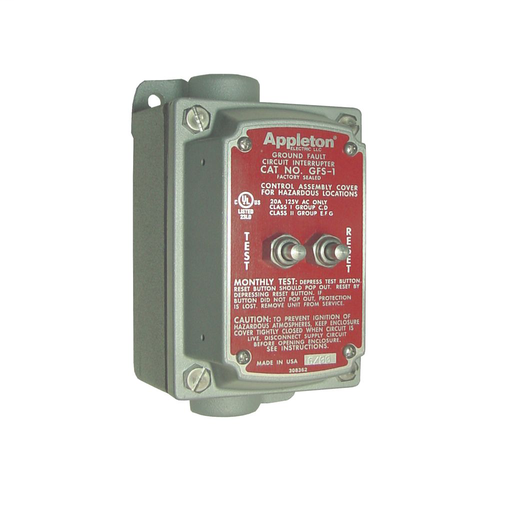

  • Ground fault circuit interrupting cover and receptacle combinations available
  • U-Line™ EFSR-K receptacle covers are UL Classified when used with Killark™ SWB series mounting boxes
  • Intermateable with competitor's plugs of like configurations
