Hubbell HBL2745-SW 30A 3Ph 600V AC Twist-Lock Watertight SAFETY-SHROUD Gray VALOX Flanged Inlet

Manufacturer: Hubbell Wiring Device | Catalog # HBL2745SW | Echo Electric Part # 166775
$214.38/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual

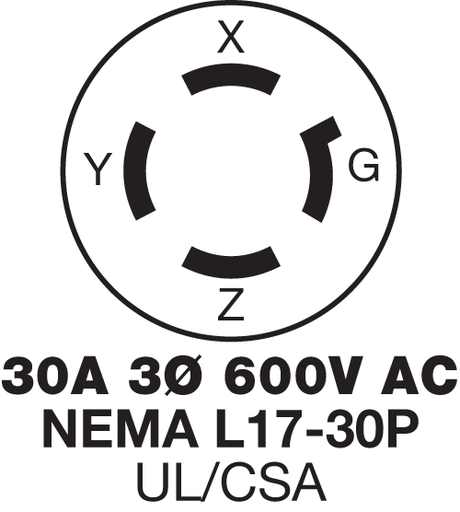

Watertight Safety-Shroud®, Locking Devices, Twist-Lock®, Flanged Inlet, 30A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, NEMA L17-30P, Screw Terminal , Gray

Technical Information

Amperage
30 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
12-8 AWG
Connection Type
Screw Terminal
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Composite
NEMA
L17-30P
Number of Conductors
4
Number of Phases
3 Phase
Number of Poles
3-3 Pole
Number of Ports
3
Number of Wires
4,4
Operating Temperature
-40 degrees C
Size
Standard Sized
TC Connection
Screw Terminals
Type
Standard, Single, Watertight
Voltage
600 Volt
Wattage
18000 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Safety-Shroud®

General Product Info

12-Digit UPC
783585232041
Color
Gray and White
Environmental Conditions
Watertight
GTiN
00783585232041
Product UPC
78358523204
Weight
0.65 lb

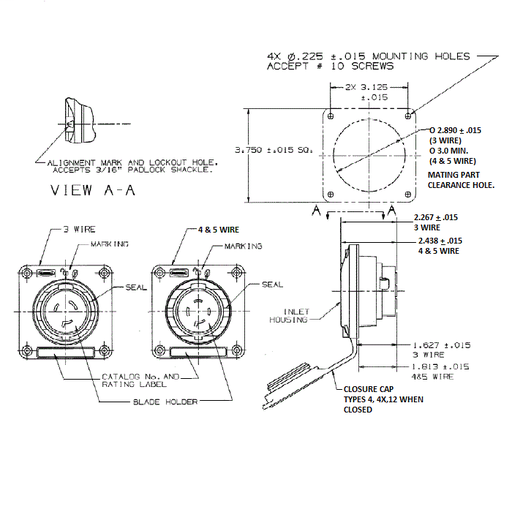

Dimensions

Height
2.44 Inch
Length
3-3/4 Inch
Width
3.200 in

Certifications and Compliance

Country of Origin
USA
Features
  • UL Type 4X Environmental seal protects connection while in use.
  • One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
  • Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected.
  • Closure cap is included for environmental seal when device is not in use
  • Catalog number and color-coded voltage rating are easily visible even when in use
  • Shrouded Watertight Construction
