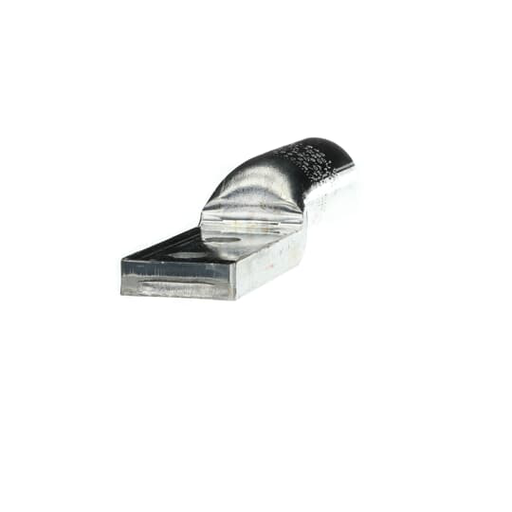

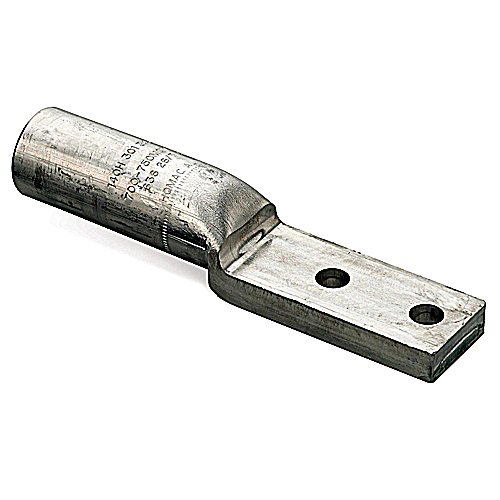

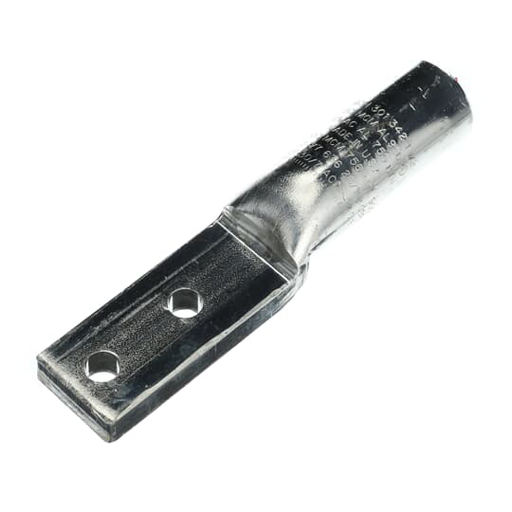

Product image for ABB AL 750 NTN AL TIN 2HOLE NEMA ST
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

ABB AL 750 NTN AL TIN 2HOLE NEMA ST

Manufacturer: Thomas & Betts Co | Catalog # AL-750-NTN | Echo Electric Part # 167038
$77.41/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Safety Data Sheet

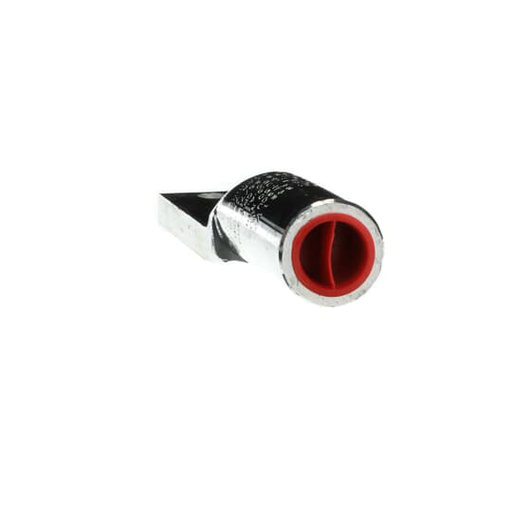

Tin Plated Aluminum Two-Hole NEMA Lugs - straight lug, 750 kcmil AL9CU UL listed, installing dies 140H, 301, 342, 1 1/2. Using Die 1 1/2H 700 kcmil, 750 Compact, 900 Compact, 636(24/7), 636(26/7) ACSR, 721(18/1) 721(30/7) ACAR, 740.8 AAAC. Length 8-1/4 inch. Pad 1-3/4 inch wide x 3-3/4 inch long x 37/64 inch Minimum Thick. (2) 9/16 inch holes on 1-3/4 inch centers. Barrel 3-5/16 inch long x 1-19/32 inch outside diameter. Oxide Inhibitor. Red Cap.

Technical Information

Applications
General purpose lugs for Aluminum and Copper terminations.
Conductor Size
750 kcmil
Material
Aluminum
Size
Length 8-1/4 inches
TC Connection
Compression
Type
Compression Lug Two Hole
Wire Size
750 kcmil

Manufacturer Information

Brand
Homac

General Product Info

12-Digit UPC
783786694075
Box Quantity
25
Finish
Tin Plated
GTiN
00783786694075
Product UPC
78378669407
Features
  • Dual-Rated for Use with Aluminum and Copper Conductors.
  • Made of Aluminum for High Strength and High Conductivity.
  • Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
  • All Lugs Marked with Conductor Size and Die References for Easy Identification.
  • Meets or Exceeds ANSI C119.4 Specifications.
