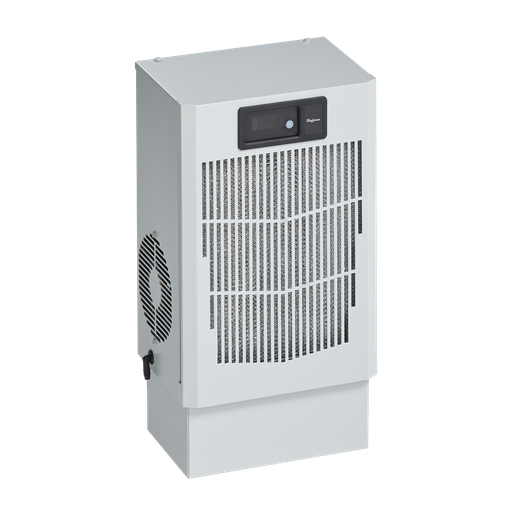

Hoffman N170246G010 SPECTRACOOL Compact Indoor, 1800 BTU 460V 50 60 HZ

Manufacturer: nVent Hoffman | Catalog # N170246G010 | Echo Electric Part # 167090
$3,716.30/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Safety Data Sheet
SpectraCool Narrow Compact Indoor Air Conditioners provide a space-saving solution for low-depth cabinet needs. Narrow models are designed to fit on 12-inch (300-mm) deep floor- and wall-mount enclosures.

Technical Information

Amperage
2/2 Amp
Applications
For Industrial Automation, Package Handling Equipment, Security and Defense Systems
BTU Hour
1800 BTU
Color Coding
RAL 7035
Control Type
Mechanical Thermostat
Enclosure Rating
12, IP34, IP54
Enclosure Type
NEMA 12, IP54, IP34
Material
Metal
Max Current
2.0 A
Max Temperature
125 degrees F
Min Temperature
50 degrees F
Power Rating
440/527 W
Temperature Rating
50 - 125 degrees F
Type
Narrow, Compact, Indoor
Voltage
460
Wattage
527 Watt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Spectracool

General Product Info

12-Digit UPC
783510255787
Color
RAL 7035 Light Gray/Semi-Textured Powder Coated
Finish
Powder Coated
GTiN
00783510255787
Product UPC
78351025578
Weight
72.3 lb

Dimensions

Depth
8.4 Inch
Height
22.14 Inch
Length
15.4 Inch
Thickness
1.21 mm
Width
12 in
Features
  • Narrow design accommodates 12-inch (300 mm) deep cabinets
  • Attractive industrial design with minimal use of visible fasteners
  • Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
  • R513A or R134a refrigerant
  • Models for 115, 230 and 400/460 VAC power input
  • Operating temperature range from 50 F/10 C to 125 F/52 C
  • Reliable mechanical thermostat is located behind the cover of the unit; air conditioner models include digital display on ambient side
  • Dust-resistant condenser coil allows the unit to be run filterless in most applications
  • Galvanized sheet-metal cover for rugged factory and outdoor environments
  • Easy-mount flanges for simple installation
  • Every unit functionally tested before shipping
  • All models also include active condensate management, power-off relay for door switch and other system requirements and a malfunction switch
  • Remote Access Control Units support up to 2 temperature sensors and 10 alarms. They support multiple communication protocols: SNMP, Modbus TCP, Ethernet/IP, and Profinet.
  • Mounting hardware, gaskets and user manual furnished with the unit
