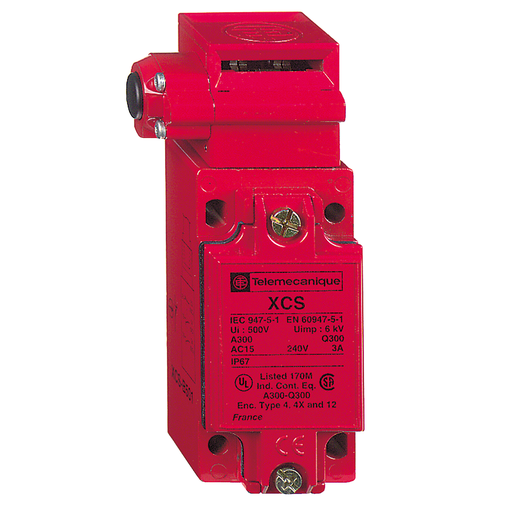

Product image for TES XCSB503 Safety switch, TES Safety switches XCS, metal XCSB, 1 NC + 2 NO, slow break, 1 entry tapped 1/2" NPT
Email

TES XCSB503 Safety switch, TES Safety switches XCS, metal XCSB, 1 NC + 2 NO, slow break, 1 entry tapped 1/2" NPT

Manufacturer: TES ELECTRIC | Catalog # XCSB503 | Echo Electric Part # 167217
$425.34/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This XCSB Key Operated Safety Switch for guard doors with unlocking by pushbutton has an adjustable turret head and a robust red coated Zamak body with a 1/2" NPT cable gland entry, allowing for flexible installation. It has 2 normally open and 1 normally closed break-before-make (slow break) contacts. Its B10D reliability data is 3 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Technical Information

Action
SLOW-BREAK, BREAK BEFORE MAKE
Actuator
KEY
Amperage
10 Amp
Applications
KEY OPERATED TURRET HEAD
Body Material
Zamak
Cable Entry
1 entry tapped 1/2" NPT
Contact Configuration
1 NC + 2 NO
Enclosure
NEMA 4/4X/12 - IP67
Head Type
Key operated turret head
Material
Metal
Net Weight
0.475 kg
Number of Poles
3 Pole
Operating Cycles
10 cyc/mn For Maximum Durability
Operating Temperature
-25-70 Adegrees C
Size
114-114 MM,44 MM,52 MM
Standard
CSA C22.2 No 14,EN 1088/ISO 14119,EN/IEC 60204-1,EN/IEC 60947-5-1,EN/ISO 12100,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
TERMINAL 1 X 0.5...2 X 1.5 MMA WITH OR WITHOUT CABLE END
Type
KEY OPERATED TURRET HEAD,SAFETY SWITCH
Voltage
6 A 120 Volt, AC-15, A300 EN/IEC 60947-5-1-3 A 240 Volt, AC-15, A300 EN/IEC 60947-5-1-0.55 A 125 Volt, DC-13, Q300 EN/IEC 60947-5-1-0.27 A 250 Volt, DC-13, Q300 EN/IEC 60947-5-1

Manufacturer Information

Brand
Telemecanique
Sub Brand
XCSB

General Product Info

12-Digit UPC
785901277972
Environmental Conditions
WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
03389110185010
Product UPC
78590127797
Weight
1.05 lb

Dimensions

Depth
44 mm
Height
114-114 mm
Warranty Length
18 mth
Width
52 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
France
