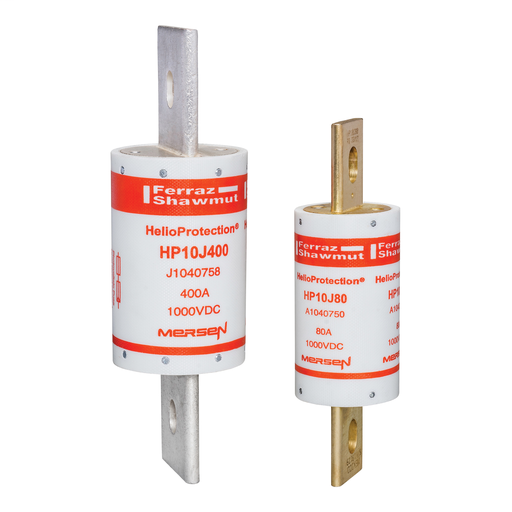

Product image for Mersen HP10J125 PV Fuse gPV 1000VDC
Email

Mersen HP10J125 PV Fuse gPV 1000VDC

Manufacturer: Ferraz Shawmut | Catalog # HP10J125 | Echo Electric Part # 167567
$452.90/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Mersen’s HP10J photovoltaic (PV) fuse series is designed specifically for DC Recombiner Boxes in the protection of 1000VDC photovoltaic systems. Its robust construction makes it ideal for continuous temperature and current cycling withstand adding to system longevity. The 1000VDC rated HP10J designed for low minimum breaking capacity capabilities of 1.35 times the fuse rated current value, allows for safe circuit interruption under typical low fault current conditions produced by PV arrays. Protect your off-grid or grid tied PV system from unexpected ground faults and line faults using Mersen’s HelioProtection® fuse line.

Technical Information

Amperage
125 Amp
Applications
Re-combiner (sub-combiner, array combiner, master combiner), Inverter DC input protection, Battery charge controllers
Interrupt Rating
10 kAIC
Max Operating Temperature
80 degrees C
Mounting Type
Bolted,Clip
TC Connection
Blade
Terminal Material
Brass
Terminal Type
Blade
Type
Photovoltaic Fuses
Voltage
600 Volt

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.
Sub Brand
Helio Protection

General Product Info

12-Digit UPC
782001447946
GTiN
10782001447943
Product UPC
78200144794

Dimensions

Diameter
1.63 Inch

Certifications and Compliance

Country of Origin
Mexico
Features
  • UL Listed to standard 2579 Photovoltaic Fuses
  • Smallest available footprint in the industry
  • Enlarged mounting holes
  • Low fault current interrupting capability
  • Durable construction for enhanced system longevity
  • Temperature cycle withstand capability
  • Guaranteed operation at temperature extremes
  • Blown fuse indicator options available (EI option)
  • 200A to 400A available in NH3 mounting
Certifications
  • UL listed to Standard 2579 File E333668 (70A to 600A)
  • UL listed to Standard 248 File E2137 (70A to 400A)
  • CSA Component Certified C22.2 (70A to 400A)
