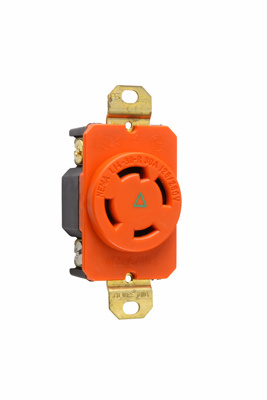

Product image for Pass & Seymour IGL1430-R Turnlok Single Receptacle, 4wire, 30amp 125/250V Isolated Ground
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour IGL1430-R Turnlok Single Receptacle, 4wire, 30amp 125/250V Isolated Ground

Manufacturer: Pass & Seymour / Legrand | Catalog # IGL1430-R | Echo Electric Part # 167860
$105.41/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Turnlok Single Receptacle 4wire 30amp 125/250volt Isolated Ground

Technical Information

Amperage
30 Amp
Applications
Commercial Applications
Conductor Size
18-10 AWG
Material
Thermoplastic
NEMA
L14-30R
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Size
3.3 in
Type
Single Receptacles
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007143096
Color
Orange
GTiN
00785007143096
Product UPC
78500714309
UNSPSC
39121403

Dimensions

Depth
1.28 Inch
Height
2.37 Inch
Width
1.61 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • UL1449 (latest revision). (1.2 x 50: s 6000V,8 x 20: s 3000A).
  • 140 joules of energy absorption in each of thethree modes.
  • 9,000 amps current handling capability in each of three modes: line to neutral, line to ground, neutral to ground.
  • 1 filtering capacitor for 7 to 1 average noise reduction.
  • Nominal let-through (suppressed) voltage inall 3 modes, 500V.
  • LED indicator light.
  • Response time less than 1 nanosecond for unmounted MOV.
  • Overcurrent protection in all 3 modes.
  • Electronic components potted for electrical, mechanical and thermal stability.
  • Thermal protection in all 3 modes.
  • Leakage current: 0.5 mA at 25: C/120VAC.
  • 3 18mm super MOVs to suppress transients in all modes : equally.
  • Common mode noise attenuation:500 KHz to 30 MHz: up to 35 dB(50 ohm source impedance)
  • Varistor voltage: 150V RMS.
  • Back and side wire capability including ground terminal.
  • Operating temperature: -40: C to 85: C(-40: F to 185: F)
  • Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE 587), ANSI/IEEE C62.45.
Certifications
  • cULus Listed
