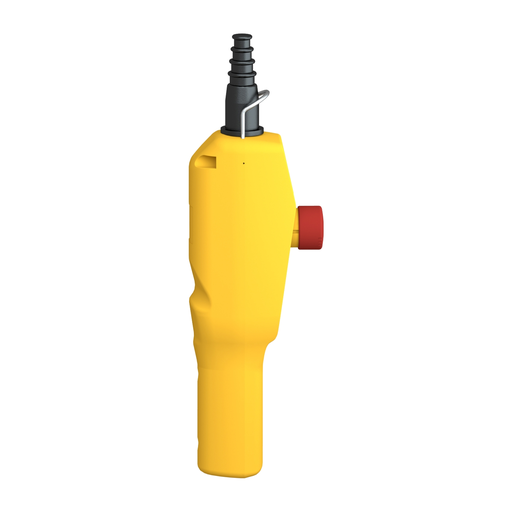

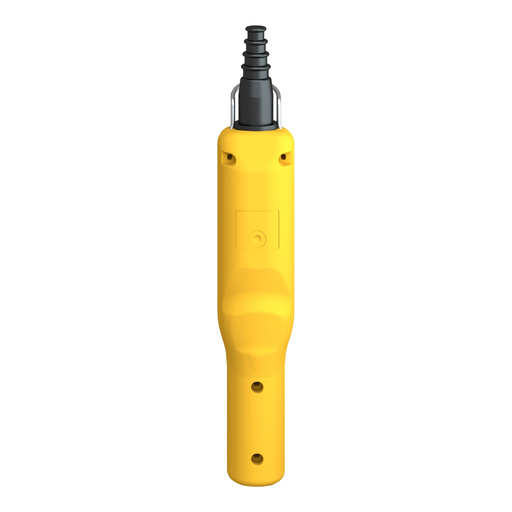

Square D XACA2013 600 VAC 10 Amp NEMA 4/4X/5 Yellow Polypropylene Pendant Station

Manufacturer: Square-D / Schneider | Catalog # XACA2013 | Echo Electric Part # 167878
$226.35/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

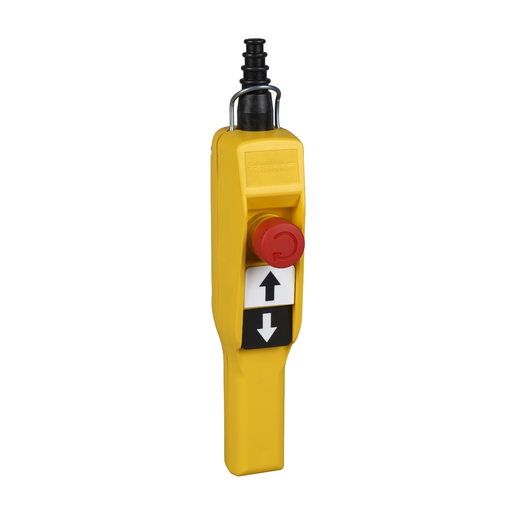

This Harmony XAC, yellow pendant station for hoist motor with pistol grip has single speed, operates with slow break mechanism. This pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines. It has 2 push buttons and 1 emergency stop with "raise" and "lower" markings, with normally open and normally close contact. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Its ergonomic pistol grip allows single handed control of your hoist and crane. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Technical Information

Actuator
(2) PUSHBUTTONS (UP/DOWN ARROWS)
Amperage
10 Amp
Applications
Control circuit;Control of single speed hoist motor
Cable Entry
7-15 mm
Contact Configuration
1 N.O. (PER OPERATOR) - 1 N.C. (FOR E-STOP)
Contact Rating
Slow-break
Enclosure
Polypropylene
Enclosure Material
Polypropylene
Enclosure Type
Complete Ready For Use
Material
Polypropylene
Net Weight
0.31 kg
Operating Force
13-15 N
Operating Temperature
-13158 degrees F (-2570 degrees C)
Standard
CSA C22.2 No 14,EN/IEC 60204-32,EN/IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP
Type
Double insulated;Intuitive;Pendant control station
Voltage
600 Volt
Wattage
40 Watt DC-13 1000000 CYCLES 60 CYC/MN 120 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C-48 Watt DC-13 1000000 CYCLES 60 CYC/MN 48 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C-65 Watt DC-13 1000000 CYCLES 60 CYC/MN 24 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XACA pistol grip

General Product Info

12-Digit UPC
389110558770
Environmental Conditions
WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
03389110558777
Product UPC
78590155877
Weight
0.31 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZB2BE101
  • ZB2BE102
  • XENG1491
  • XENG3781
Cross Sell Products
  • XACB085
